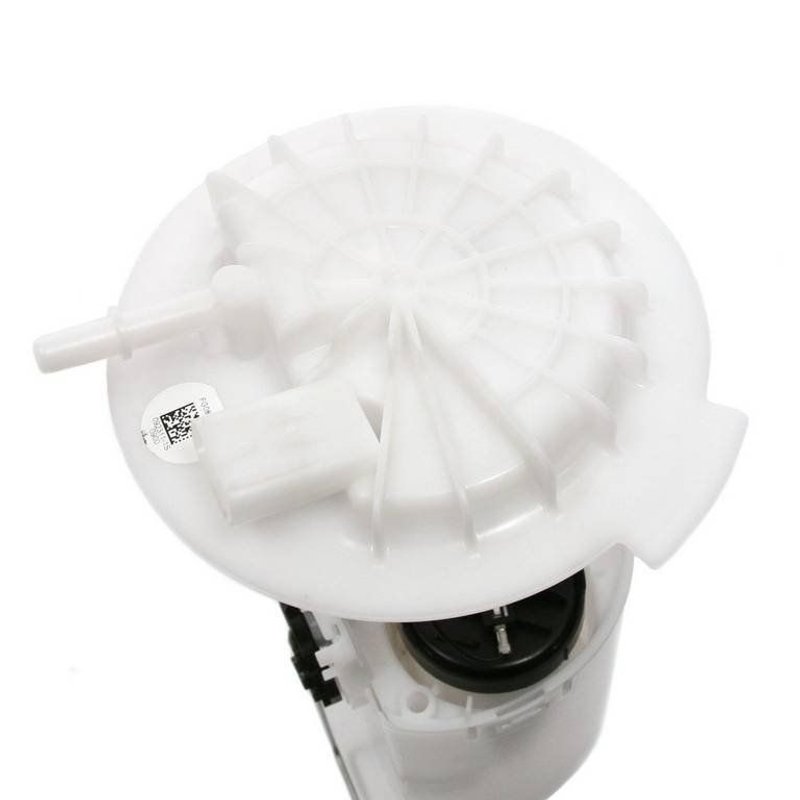

Delphi FG0887 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler, Dodge, and Volkswagen

The Delphi FG0887 fuel pump module assembly is designed to provide consistent fuel delivery for select Chrysler, Dodge, and Volkswagen vehicles. Engineered for in-tank installation, this electric fuel pump module ensures efficient fuel flow and accurate fuel level readings for models like the Grand Caravan, Routan, and Town & Country.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chrysler Grand Caravan, Dodge Routan, and Volkswagen Town & Country
• 12.0-volt operation with a maximum pressure rating of 63 psi
• Includes regulator, internal strainer, gasket, and fuel pump module with float arm
• Blade-type male terminals with four connections for secure wiring
• Quick connect outlet with 0.375-inch outside diameter
• Standard replacement grade for reliable performance

Technical Details and Features

The Delphi FG0887 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating easy installation and maintenance. The module includes a fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump delivers an average flow rating of 21 gallons per hour and maintains system pressure at 58 psi, with a maximum pressure capacity of 63 psi. The four blade-type male terminals ensure a secure electrical connection, while the included gasket or seal helps prevent leaks during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chrysler Grand Caravan
• Dodge Routan
• Volkswagen Town & Country

It is designed specifically for in-tank installation, making it suitable for fuel systems requiring an electric pump with integrated fuel level sending capabilities.

Common Issues Addressed by the Delphi FG0887

• Intermittent or complete fuel delivery failure
• Inaccurate fuel gauge readings due to faulty sender assembly
• Fuel pressure inconsistencies affecting engine performance
• Fuel pump noise or overheating
• Leaks caused by worn or missing seals and gaskets

Installation Notes and Tips

When installing the Delphi FG0887 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Verify that the gasket or seal is properly seated to avoid fuel leaks. The quick connect outlet simplifies fuel line attachment, but confirm all connections are secure. Use appropriate tools to handle the blade-type male terminals carefully to prevent damage. Follow the included instruction sheet for detailed installation steps and torque specifications.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications. The product includes a fuel pump module with float arm, seal, and instruction sheet to support proper installation. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
