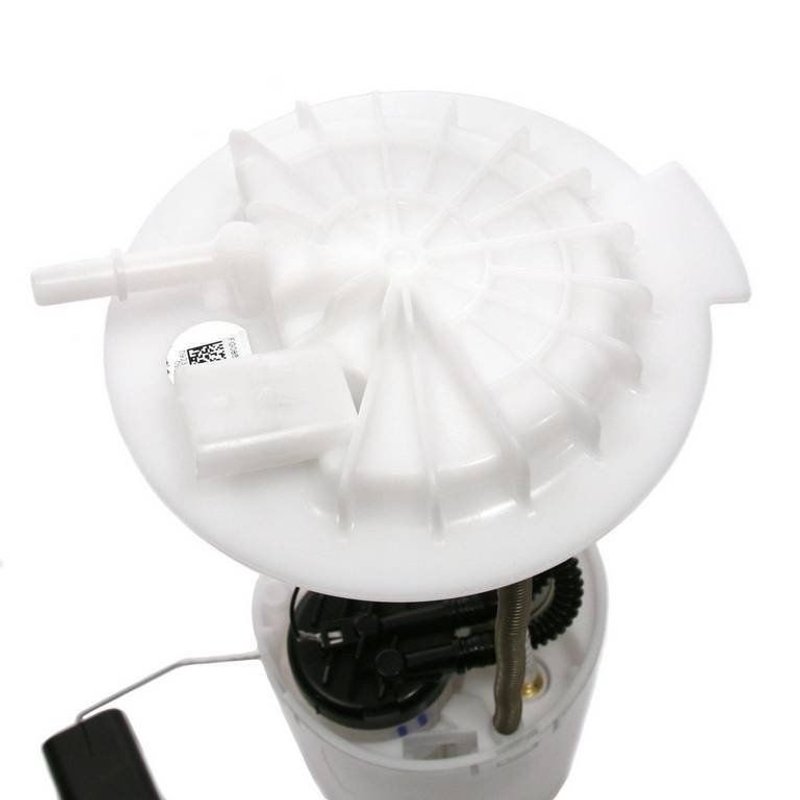

Delphi FG0888 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge and Jeep Vehicles

The Delphi FG0888 fuel pump module assembly is designed specifically for Dodge Liberty and Jeep Nitro models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gasoline engines, supporting optimal vehicle performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Dodge Liberty and Jeep Nitro gasoline engines
• 12-volt operation with a maximum pressure of 63 psi and system pressure of 58 psi
• Includes regulator, internal strainer, gasket, and fuel pump module with float arm
• Blade-type male terminals with four connections for secure wiring
• Quick connect outlet with 0.375-inch outside diameter for easy installation
• Standard replacement grade designed for reliable fuel delivery

Technical Details and Features

The Delphi FG0888 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow with an average flow rating of 21 liters per hour. The module includes a fuel level sender assembly with resistance values ranging from 51 ohms (full) to 990 ohms (empty), providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a proper fit and prevent leaks. The pump draws an average current of 14 amps and maintains system pressure at 58 psi, with a maximum pressure rating of 63 psi. The four blade-type male terminals provide secure electrical connections, supporting reliable operation in Dodge Liberty and Jeep Nitro vehicles.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Dodge Liberty and Jeep Nitro
• Resolves issues with inconsistent fuel pressure or delivery
• Corrects inaccurate fuel level readings due to sender assembly failure
• Eliminates fuel leaks by providing a new gasket or seal
• Restores proper engine performance affected by fuel pump malfunction

Installation Notes and Tips

Installation of the Delphi FG0888 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket or seal to secure the module and prevent leaks. Verify that the blade-type male terminals are properly connected to the vehicle’s wiring harness. The quick connect outlet simplifies fuel line attachment, but confirm a secure fit to avoid fuel delivery issues. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for Dodge and Jeep vehicles. The FG0888 is a standard replacement grade part, designed for durability and consistent performance. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Refer to the product documentation or Delphi’s official resources for exact warranty terms.
