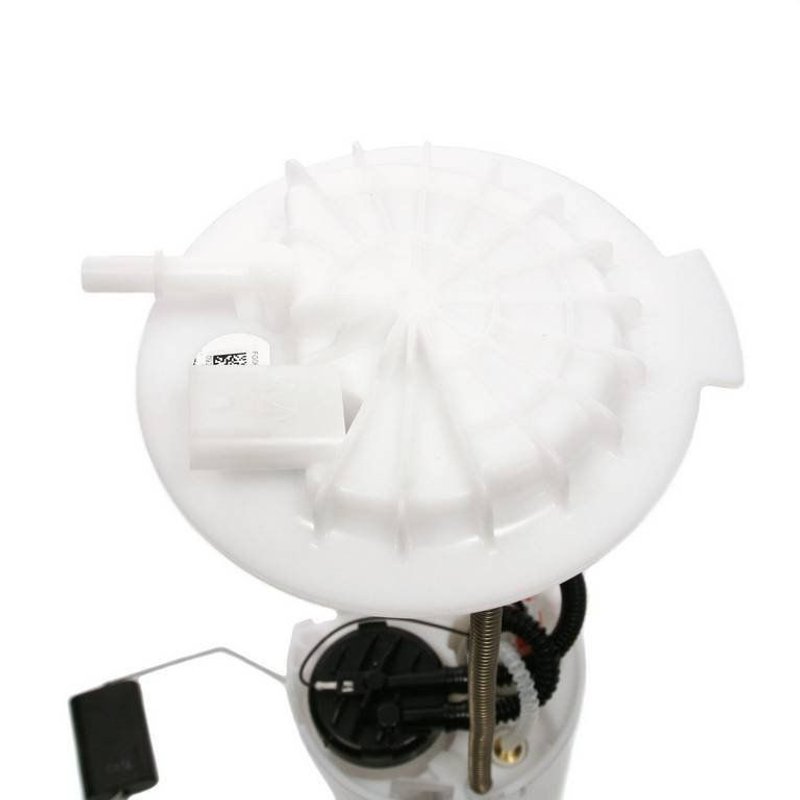

Delphi FG0889 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram 1500

The Delphi FG0889 fuel pump module assembly is designed specifically for Dodge Ram 1500 models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Designed for in-tank installation with blade-type male terminals (4 terminals)
• Maximum pressure rating of 60 psi and system pressure of 58 psi
• Average flow rating of 21 gallons per hour and average current draw of 14 amps

Technical Details and Features

The Delphi FG0889 fuel pump module assembly is engineered to meet the fuel delivery demands of Dodge Ram 1500 trucks. It features an internal strainer inlet and a quick connect outlet to facilitate efficient fuel flow and filtration. The included fuel level sender assembly provides accurate fuel gauge readings, while the regulator maintains system pressure at 58 psi to ensure consistent engine operation. The module operates on a 12-volt electrical system and uses blade-type male terminals for reliable electrical connections. The assembly comes with a gasket or seal to prevent leaks during installation.

Compatible Applications and Use Cases

This fuel pump module assembly is compatible with Dodge Ram 1500 models requiring a standard replacement fuel pump module. It is designed to address common fuel system issues such as:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings
• Low fuel pressure causing engine performance problems
• Fuel pump noise or electrical connection issues
• Fuel contamination due to faulty or missing strainers

Installation Notes and Tips

When installing the Delphi FG0889 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. The included gasket or seal should be properly seated to avoid fuel leaks. Verify that the blade-type male terminals are securely connected and that the quick connect outlet is firmly attached. This module is designed for in-tank installation, so take care when removing and reinstalling the fuel tank to avoid damage to the assembly or fuel lines.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for durability and performance. The FG0889 is a standard replacement grade part, providing reliable operation for Dodge Ram 1500 vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
