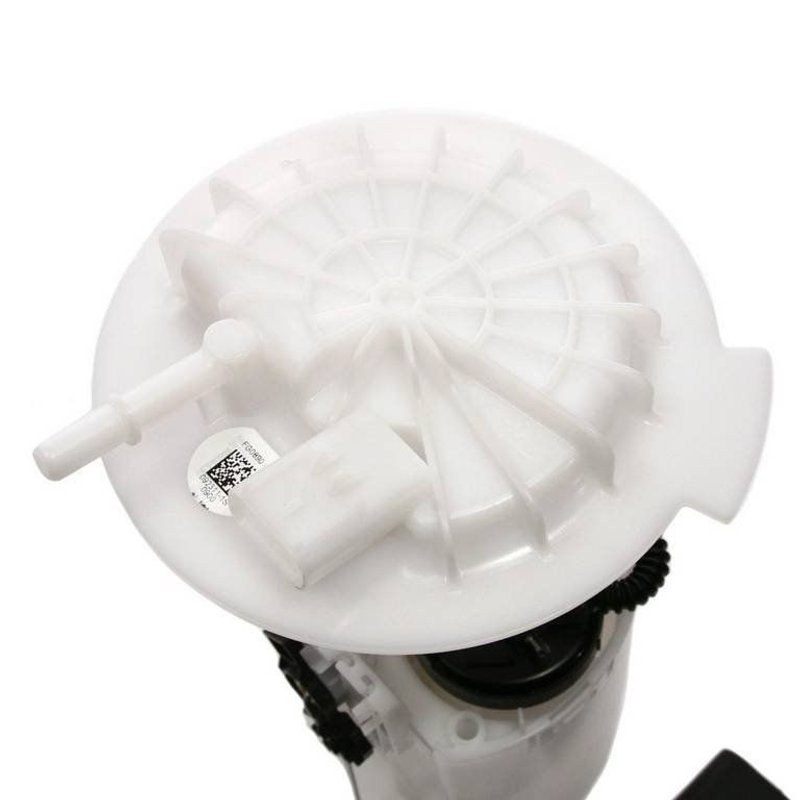

Delphi FG0890 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0890 fuel pump module assembly is designed for reliable fuel delivery in select Chrysler, Dodge, Ram, and Volkswagen vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for models like the Grand Caravan, Town & Country, Routan, and C/V.

• 12.0 Volt electric fuel pump with integrated regulator
• Maximum pressure rating of 78 psi and system pressure of 58 psi
• Includes internal strainer and fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect outlet
• Blade-type male terminals with 4 terminal quantity
• Comes with gasket/seal and instruction sheet for installation

Technical Details and Features

The Delphi FG0890 fuel pump module assembly operates at an average current draw of 11 amps and provides an average flow rating of 21 gallons per hour. It features an internal strainer inlet type and a single quick connect outlet for efficient fuel delivery. The module includes a fuel level sender assembly with resistance values ranging from 990 ohms (empty) to 51 ohms (full), allowing accurate fuel gauge readings. The assembly is designed for flex fuel compatibility and is a standard replacement grade part suitable for in-tank installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with various Chrysler, Dodge, Ram, and Volkswagen models, including the Dodge Grand Caravan, Chrysler Town & Country, Volkswagen Routan, and Ram C/V. The part number FG0890 is specifically engineered to meet the fuel delivery requirements of these vehicles, ensuring proper fit and function.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure affecting engine performance and fuel efficiency
• Fuel pump noise or failure from worn internal components
• Clogged fuel strainer leading to restricted fuel flow

Installation Notes and Tips

Installation of the Delphi FG0890 fuel pump module assembly requires removal of the fuel tank. Ensure the gasket or seal included is properly seated to prevent leaks. The blade-type male terminals should be connected securely to avoid electrical issues. Follow the instruction sheet carefully for proper installation procedures. It is recommended to inspect the fuel tank and lines for contamination or damage during replacement.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for durability and performance. This standard replacement part includes a gasket and fuel level sender assembly to ensure comprehensive functionality. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
