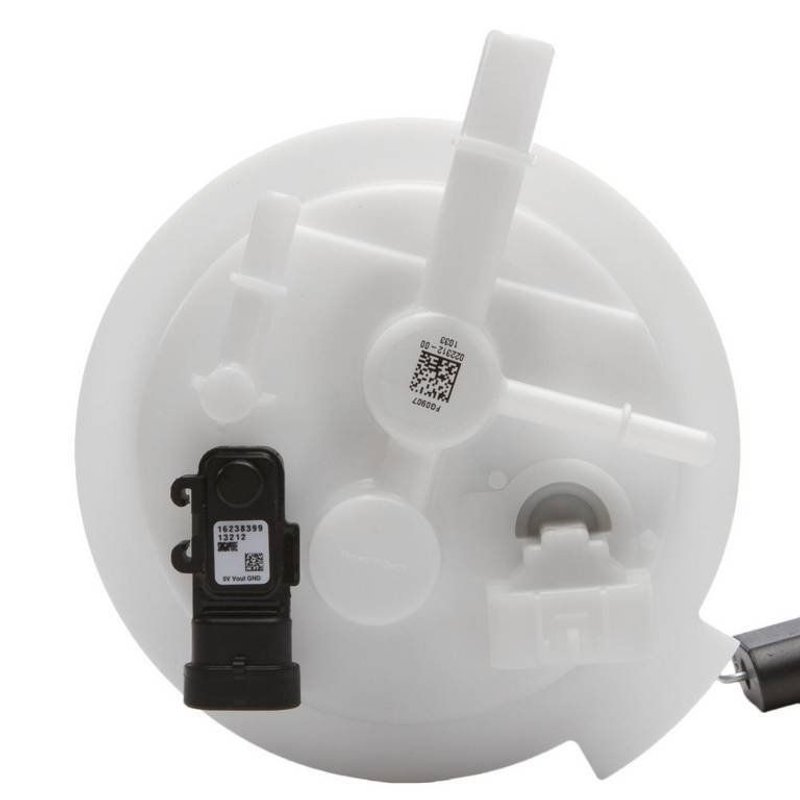

Delphi FG0907 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG0907 fuel pump module assembly is designed specifically for Chevrolet Silverado 1500 and GMC Sierra 1500 models. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gas-powered vehicles.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Silverado 1500 and GMC Sierra 1500
• 12.0 Volt operation with a maximum pressure of 78 psi
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Three male pin terminals for reliable electrical connection
• Standard replacement grade with included seal, nut, and instruction sheet

Technical Specifications and Features

The Delphi FG0907 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type with three outlets, each having an outside diameter of 0.375 inches. The pump delivers an average flow rating of 42 liters per hour and maintains a system pressure of 58 psi, with a maximum pressure rating of 78 psi. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (full) to 250 ohms (empty), providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a proper fit and prevent leaks. The terminal configuration includes three male pin terminals, supporting secure electrical connections. This fuel pump module is designed as an in-tank unit, suitable for direct replacement in compatible Chevrolet and GMC trucks.

Applications and Problem Resolution

This fuel pump module assembly is intended for use in the following vehicles:

• Chevrolet Silverado 1500
• GMC Sierra 1500

Common issues addressed by replacing the fuel pump module include:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops affecting engine performance and fuel efficiency
• Fuel pump noise or failure from worn internal components
• Leaks or seal failures within the fuel tank assembly

Installation Notes and Tips

When installing the Delphi FG0907 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump module from the tank, taking care not to damage the fuel lines or electrical connectors. Replace the gasket or seal included with the new assembly to maintain a proper seal and prevent leaks. Confirm that the three male pin terminals align correctly with the vehicle’s wiring harness. After installation, verify fuel pressure and fuel level sender operation before completing the reassembly. Follow the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for reliable performance and durability. The FG0907 is a standard replacement grade part designed for long-term service in Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. This product includes a gasket and strainer to ensure proper fit and filtration. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
