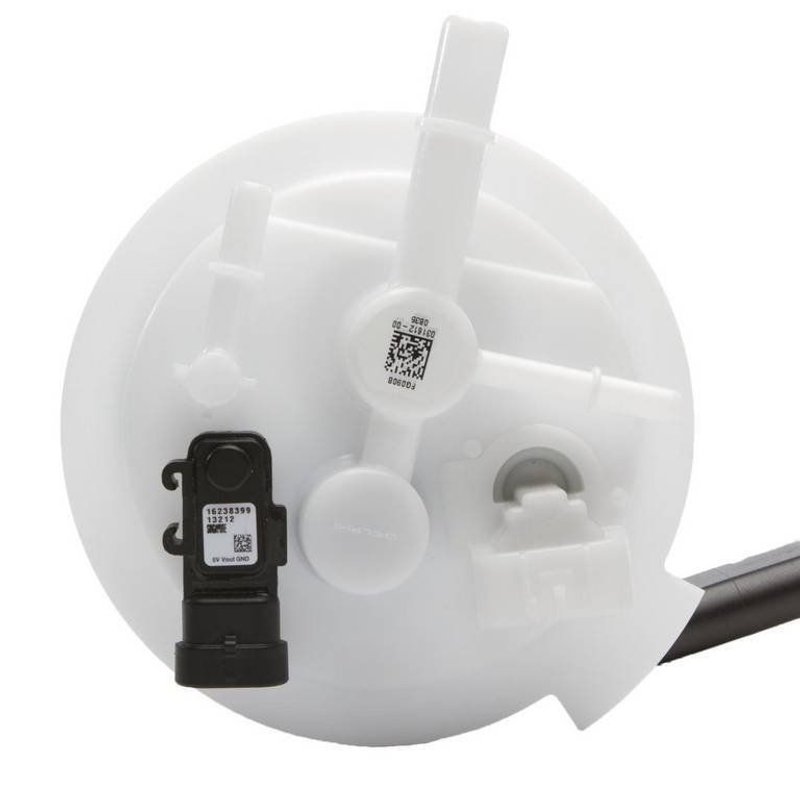

Delphi FG0908 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG0908 fuel pump module assembly is designed specifically for Chevrolet Silverado 1500 and GMC Sierra 1500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• Internal strainer and quick connect outlet for efficient fuel flow
• Three-pin male terminal configuration for secure electrical connection
• Maximum pressure rating of 78 psi with system pressure at 58 psi
• Includes gasket and seal for proper installation
• Average flow rating of 42 liters per hour and average current draw of 14 amps
• Vapor pressure sensor included for emissions control

Technical Details and Features

The Delphi FG0908 fuel pump module assembly is engineered as a standard replacement part for in-tank fuel delivery systems in Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It features a 0.375 inch outlet outside diameter with three quick connect outlets to ensure reliable fuel flow. The pump operates at 12 volts and is designed for gasoline fuel types. The integrated fuel pressure regulator maintains a maximum pressure of 78 psi, with a system pressure of 58 psi, supporting consistent engine performance under various driving conditions.

This module includes an internal strainer at the inlet to prevent debris from entering the fuel system, and a fuel level sender assembly with a float arm to provide accurate fuel gauge readings. The electrical connection uses a three-pin male terminal with pin-type terminals for secure and reliable power delivery. The assembly also comes with a gasket and seal to ensure a proper fit and prevent leaks during installation.

Compatible Vehicles and Applications

• Chevrolet Silverado 1500 (Gasoline models)
• GMC Sierra 1500 (Gasoline models)

This fuel pump module assembly is designed to replace worn or failing fuel pumps in these specific truck models, restoring proper fuel delivery and system pressure.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops leading to poor engine performance or hesitation
• Fuel pump noise or failure from worn internal components
• Fuel contamination due to damaged or missing strainer

Installation Notes and Tips

Installation of the Delphi FG0908 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized and battery disconnected before beginning. The included gasket and seal should be replaced to prevent leaks. Verify the three-pin male terminal connections are secure and free of corrosion. Use appropriate tools for the quick connect outlets to avoid damage. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. This FG0908 assembly is a standard replacement grade part designed for reliable operation. It includes a vapor pressure sensor to support emissions compliance. Warranty coverage details should be confirmed with the parts distributor or vehicle manufacturer, as they may vary by region and application.
