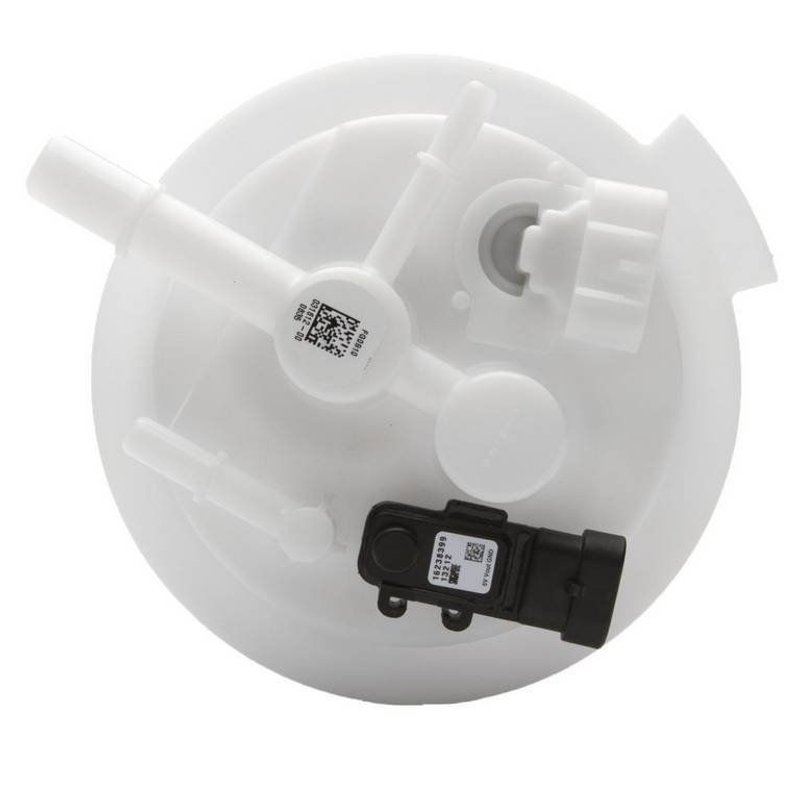

Delphi FG0910 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG0910 fuel pump module assembly is designed to provide consistent fuel delivery for Chevrolet Silverado 1500, Silverado 2500 HD, GMC Sierra 1500, and Sierra 2500 HD models. This in-tank electric fuel pump ensures optimal performance and fuel efficiency for gas-powered vehicles.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Silverado 1500, Silverado 2500 HD, GMC Sierra 1500, and Sierra 2500 HD
• 12.0-volt operation with a maximum pressure of 78 psi and system pressure of 62 psi
• Includes regulator, internal strainer, gasket, and fuel level sender assembly
• Quick connect outlet type with 0.375-inch outside diameter
• Three male pin terminals with 3-terminal quantity for secure electrical connection
• Average flow rating of 37 and average current draw of 14 amps
• Standard replacement grade for reliable performance
• Includes fuel pump module assembly with float arm, seal, and instruction sheet

Detailed Product Description

The Delphi FG0910 fuel pump module assembly is engineered for gas-fueled Chevrolet and GMC trucks, specifically the Silverado 1500, Silverado 2500 HD, Sierra 1500, and Sierra 2500 HD. This in-tank electric pump features an internal strainer and regulator to maintain consistent fuel pressure and filtration. The quick connect outlet with a 0.375-inch outside diameter allows for straightforward installation and secure fuel line connection. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (full) to 250 ohms (empty), providing accurate fuel gauge readings. Designed with three male pin terminals, the pump ensures reliable electrical connectivity. The assembly operates at 12 volts with an average current draw of 14 amps and delivers an average flow rating of 37, supporting efficient fuel delivery under various driving conditions.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet Silverado and GMC Sierra trucks
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions from clogged or damaged internal strainers
• Restores proper fuel system operation in gas-powered Silverado 1500, 2500 HD, Sierra 1500, and 2500 HD models

Installation Notes and Tips

Installation of the Delphi FG0910 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is parked on a level surface and the fuel system is depressurized before beginning. The included gasket and seal should be properly seated to prevent leaks. Verify the three-pin male terminals are securely connected to the vehicle’s wiring harness. Follow the instruction sheet carefully to avoid damage to the quick connect outlets and internal components. It is recommended to inspect the fuel tank for debris or contamination before installing the new pump module.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump module assembly designed to meet OEM specifications for Chevrolet and GMC trucks. The FG0910 part number undergoes rigorous testing to ensure durability and consistent fuel delivery performance. This product includes a fuel level sender assembly and regulator to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
