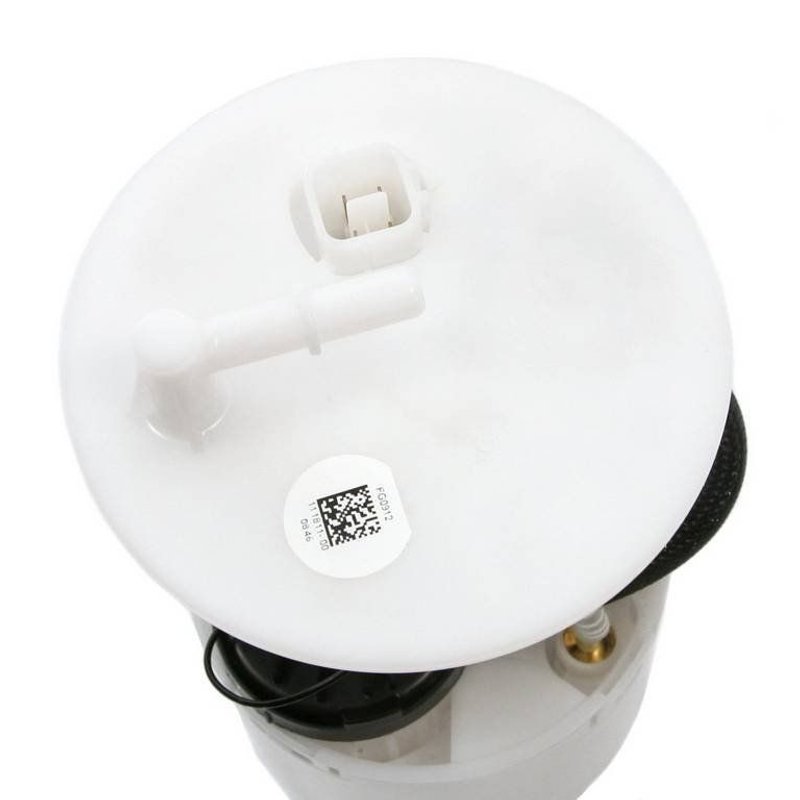

Delphi FG0912 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura and Honda Vehicles

The Delphi FG0912 fuel pump module assembly is designed to provide consistent fuel delivery for select Acura and Honda models. Engineered for compatibility with the Accord, Crosstour, and TSX, this in-tank electric fuel pump module ensures efficient operation and precise fuel regulation.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Acura Accord, Crosstour, and Honda TSX models
• 12-volt operation with a maximum pressure rating of 65 psi
• Includes regulator, internal strainer, gasket, and lock ring for secure installation
• Blade-type male terminals with four connections for reliable electrical contact
• Quick connect outlet with 0.375-inch outside diameter for easy fuel line attachment
• Standard replacement grade designed for gas fuel systems

Technical Details and Features

The Delphi FG0912 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow with an average flow rating of 21 liters per hour. The module includes a fuel pressure regulator to maintain system pressure at 51 psi, with a maximum pressure capacity of 65 psi. Electrical connections are made via four blade-type male terminals, ensuring secure and stable power delivery. The assembly also incorporates a fuel level sender assembly with resistance values ranging from 780 ohms (empty) to 20 ohms (full), providing accurate fuel level readings. Included components such as the gasket, lock ring, and strainer support proper sealing and filtration within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Acura Accord
• Acura Crosstour
• Honda TSX

It is designed specifically for in-tank installation and supports electric fuel delivery systems in these models. The FG0912 part number ensures proper fitment and function for these applications.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure irregularities causing engine performance issues
• Fuel pump noise or overheating from worn components
• Leaks or poor sealing within the fuel tank assembly

Installation Notes and Tips

Installation of the Delphi FG0912 fuel pump module assembly requires removal of the fuel tank and proper handling of fuel system components. Ensure all electrical connections are clean and secure, and verify the gasket and lock ring are properly seated to prevent leaks. Use caution when disconnecting and reconnecting the quick connect outlet to avoid damage. It is recommended to follow vehicle-specific service manuals for torque specifications and safety procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG0912 is a standard replacement grade part, backed by Delphi's quality control processes. Warranty coverage details should be confirmed at the point of purchase, typically including protection against defects in materials and workmanship.
