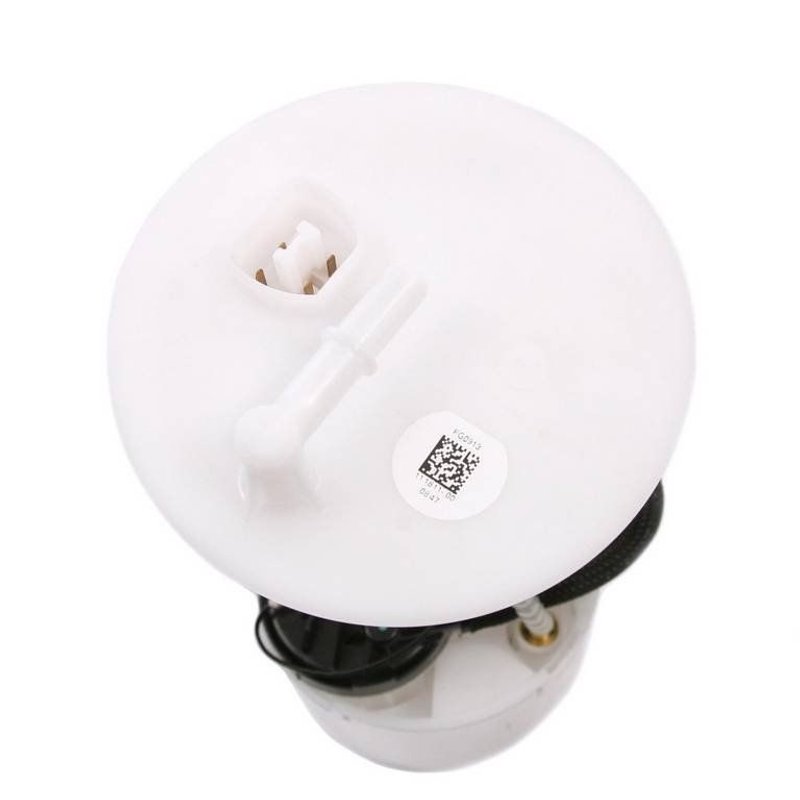

Delphi FG0913 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura and Honda Vehicles

The Delphi FG0913 fuel pump module assembly is designed specifically for Acura and Honda models such as the Accord and TSX. This in-tank electric fuel pump ensures consistent fuel delivery and pressure for optimal engine performance.

Key Features of the Delphi FG0913 Fuel Pump Module

• 12-volt electric pump compatible with gasoline fuel systems
• Includes regulator for maintaining system pressure up to 65 psi
• Equipped with a fuel level sender assembly for accurate fuel gauge readings
• Features a 0.375-inch outlet outside diameter with quick connect outlet type
• Comes with gasket, seal, lock ring, and internal strainer for secure installation and filtration
• Blade-type male terminals with four connections for reliable electrical contact
• Average flow rating of 21 liters per hour and average current draw of 6 amps
• Standard replacement grade designed for direct fit and function

Detailed Description of the Delphi FG0913 Fuel Pump Module

This fuel pump module assembly is engineered for in-tank installation in select Acura and Honda vehicles, including the Accord and TSX. The electric pump operates at 12 volts and is optimized for gasoline fuel delivery, providing a consistent system pressure of 51 psi with a maximum capability of 65 psi. The integrated regulator ensures stable fuel pressure, while the internal strainer protects the fuel system from contaminants. The module includes a fuel level sender assembly, enabling accurate fuel level monitoring. The quick connect outlet and blade-type male terminals simplify installation and electrical connections. The package contains all necessary components such as the gasket, seal, and lock ring to ensure a secure and leak-free fit.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Acura Accord and Honda TSX models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Eliminates fuel delivery interruptions caused by clogged strainers or worn components
• Addresses electrical connection problems with reliable blade terminal design

Installation Notes and Tips

• Ensure vehicle compatibility with Acura Accord and Honda TSX before installation
• Handle the fuel pump module carefully to avoid damage to the internal strainer and float arm
• Replace the gasket and seal included in the package to prevent fuel leaks
• Verify all electrical connections are secure on the four blade terminals
• Follow manufacturer instructions for proper lock ring installation to secure the module in the fuel tank

Quality Assurance and Warranty Information

The Delphi FG0913 fuel pump module assembly is manufactured to meet OEM specifications for reliable performance and durability. It is a standard replacement grade part designed to restore proper fuel delivery and system function. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring confidence in your purchase.
