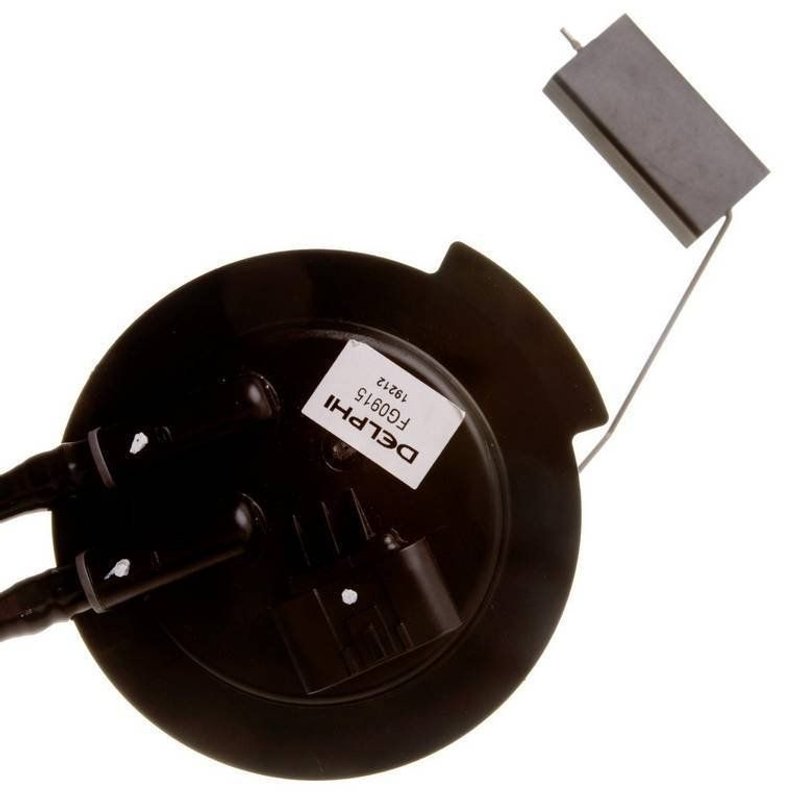

Delphi FG0915 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet, Pontiac, and Saturn

The Delphi FG0915 fuel pump module assembly is designed to provide consistent fuel delivery for select Chevrolet, Pontiac, and Saturn models. Engineered for in-tank installation, this electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 87 psi and system pressure of 55 psi
• Comes with regulator, gasket, lock ring, and external strainer
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type terminals, 4 male terminals included
• Average flow rating of 25 gallons per hour and average current draw of 6 amps

Technical Details and Features

The Delphi FG0915 fuel pump module assembly is an in-tank electric pump designed for gasoline fuel systems. It features a quick connect outlet with a 0.375 inch outside diameter and two outlet ports to ensure efficient fuel delivery. The module includes a built-in fuel pressure regulator and an external strainer to protect the fuel system from contaminants. The assembly comes complete with a gasket, lock ring, and a fuel level sender assembly with a float arm for accurate fuel gauge readings. The blade-type terminals (four male terminals) provide secure electrical connections. This pump operates at 12 volts with a maximum pressure of 87 psi and maintains a system pressure of 55 psi, supporting an average flow rate of 25 gallons per hour.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Cobalt
• Pontiac G5
• Saturn Ion

Use the Delphi FG0915 to replace faulty or worn fuel pump modules in these models to restore proper fuel delivery and maintain engine efficiency.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops affecting engine performance and fuel economy
• Contaminated fuel causing clogging or damage to fuel injectors
• Electrical connection failures leading to pump malfunction

Installation Notes and Tips

Installation of the Delphi FG0915 fuel pump module assembly requires removal of the fuel tank. Ensure the fuel system is depressurized before beginning work. The included gasket and lock ring must be properly seated to prevent leaks. Verify all electrical connections are secure using the blade-type terminals. It is recommended to inspect and clean the fuel tank and lines during installation to avoid premature pump failure. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for reliable performance. The FG0915 is a standard replacement grade part designed for durability and consistent operation. This product includes a fuel level sender assembly and all necessary seals and hardware for installation. Warranty coverage details should be confirmed at the time of purchase, typically offering protection against manufacturing defects.
