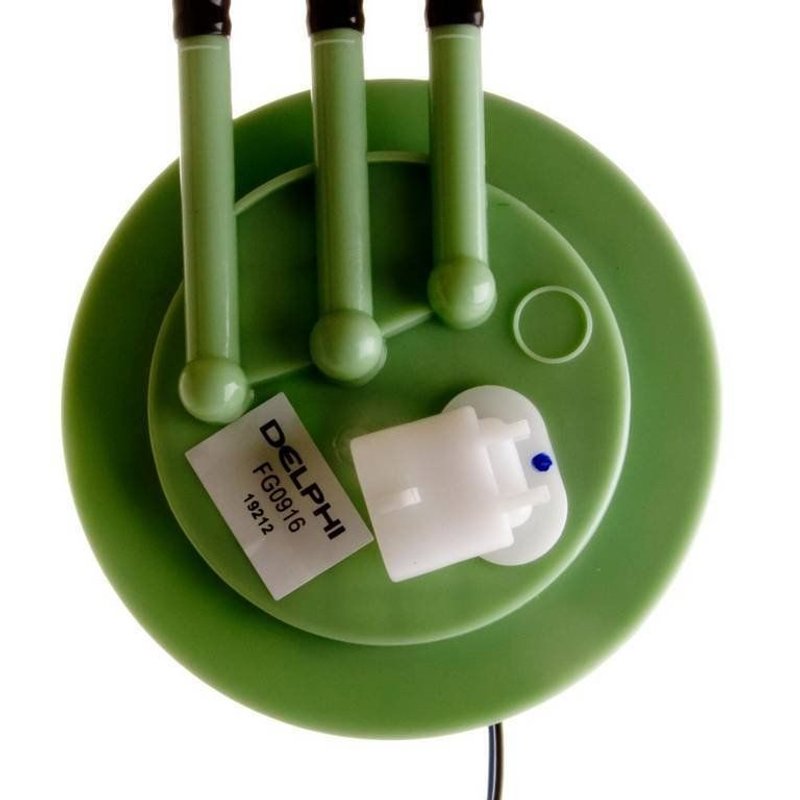

Delphi FG0916 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Saturn Vehicles

The Delphi FG0916 fuel pump module assembly is designed specifically for select Saturn models, including SC1, SC2, SL, SL1, SL2, SW1, and SW2. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gasoline-powered vehicles.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 models
• Operates at 12 volts with a system pressure of 40 psi and maximum pressure of 80 psi
• Includes external strainer inlet and quick connect outlet (0.375 inch diameter)
• Equipped with 4 male blade terminals and a fuel strainer for filtration
• Comes with gasket/seal and instruction sheet for installation

Technical Details and Specifications

The Delphi FG0916 fuel pump module assembly is engineered for gasoline fuel systems and features an electric pump type with an average flow rating of 26 liters per hour. It operates on a 12.0-volt system and maintains a system pressure of 40 psi, with a maximum pressure rating of 80 psi. The module includes a fuel level sender assembly with resistance values ranging from 678 ohms (empty) to 20 ohms (full), providing accurate fuel level readings. The pump has four male blade terminals for electrical connections and uses a quick connect outlet with a 0.375-inch outside diameter. The inlet is designed with an external strainer to prevent debris from entering the fuel system. This assembly is intended for in-tank installation and does not include a regulator or lock ring.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Saturn SC and SL series vehicles
• Resolves inconsistent fuel pressure or engine hesitation due to fuel delivery problems
• Fixes inaccurate fuel level readings caused by faulty sender assemblies
• Addresses fuel contamination issues with included external strainer
• Restores proper electrical connections with four blade terminals

Installation Notes and Tips

Installation of the Delphi FG0916 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the gasket or seal included is properly seated to prevent fuel leaks. Verify electrical connections match the four male blade terminals and confirm the quick connect outlet is securely attached. Follow the instruction sheet carefully to maintain system pressure and avoid damage to the fuel system components. It is recommended to inspect the fuel tank and lines for debris before installation.

Quality Assurance and Warranty Information

Delphi provides this fuel pump module assembly as a standard replacement part, meeting OEM specifications for Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. The product includes a fuel strainer and fuel level sender assembly to ensure reliable operation. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
