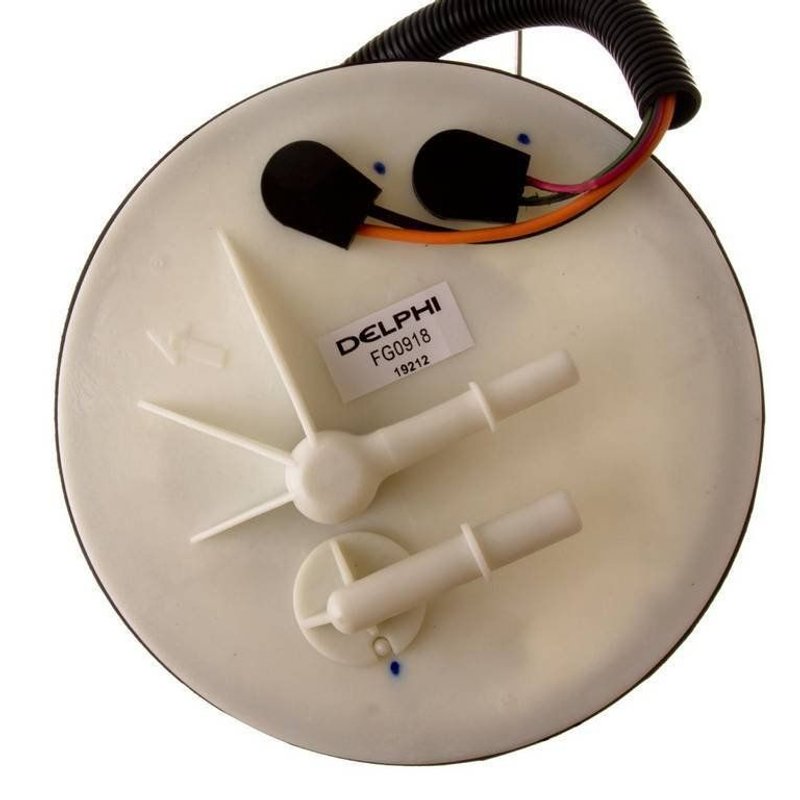

Delphi FG0918 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Jeep Grand Cherokee

The Delphi FG0918 fuel pump module assembly is designed specifically for Jeep Grand Cherokee models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and accurate fuel level readings, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• In-tank design with external strainer for fuel filtration
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.313 inch outside diameter
• Supports gas fuel type with a maximum pressure of 90 psi
• Four male blade terminals for secure electrical connections
• Includes gasket or seal and strainer for installation readiness
• Average flow rating of 26 liters per hour and system pressure of 49 psi

Technical Details and Features

The Delphi FG0918 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an in-tank electric pump with an external strainer inlet type, ensuring clean fuel delivery. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings with resistance values ranging from 270 ohms (empty) to 20 ohms (full). The outlet uses a quick connect type with two outlets, each having an outside diameter of 0.313 inches. The assembly is equipped with four male blade terminals for reliable electrical connections and comes with a gasket or seal to ensure a proper fit during installation. The pump maintains a system pressure of 49 psi and can handle a maximum pressure of 90 psi, supporting consistent fuel flow rated at 26 liters per hour with an average current draw of 7 amps.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Jeep Grand Cherokee models requiring a standard replacement fuel pump. It is designed to address common fuel delivery and fuel level sensing issues in these vehicles.

• Resolves fuel delivery interruptions or engine stalling
• Corrects inaccurate fuel gauge readings
• Replaces faulty or worn-out in-tank fuel pumps
• Improves fuel system pressure stability
• Prevents fuel contamination with included external strainer

Installation Notes and Tips

Installation of the Delphi FG0918 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket or seal included is properly seated to prevent fuel leaks. Verify electrical connections using the four male blade terminals and confirm the quick connect outlets are securely attached. Follow vehicle-specific service manual instructions for safe handling of fuel system components and proper torque specifications.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. This FG0918 module is a standard replacement part designed to provide reliable performance in Jeep Grand Cherokee vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
