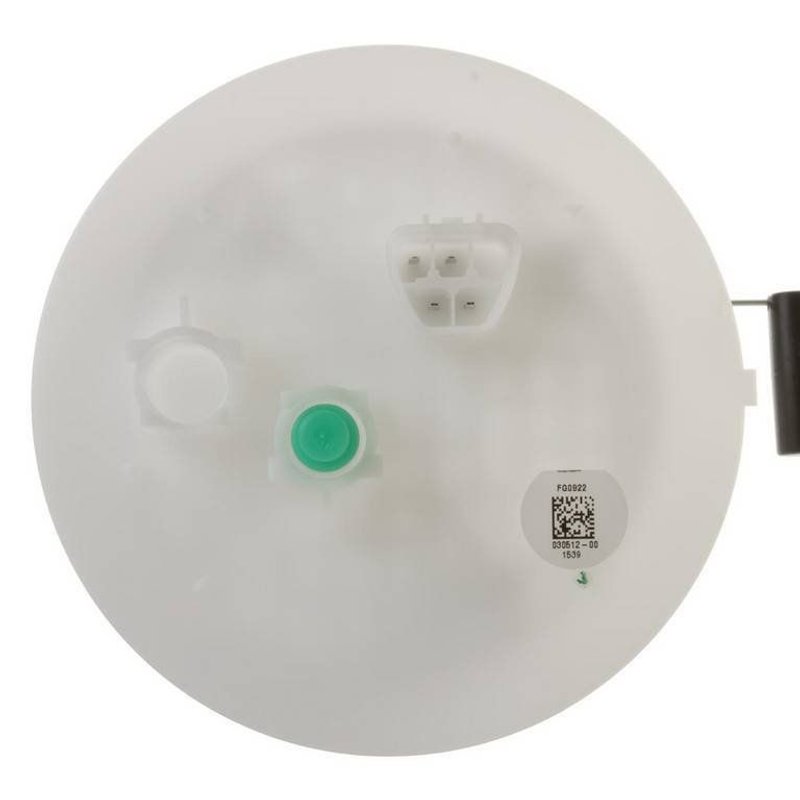

Delphi FG0922 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Lexus and Toyota Vehicles

The Delphi FG0922 fuel pump module assembly is designed specifically for select Lexus and Toyota models, including the Highlander, RX330, and RX350. This in-tank electric fuel pump ensures consistent fuel delivery and pressure for optimal engine performance.

• Compatible with Lexus Highlander, RX330, RX350 and Toyota models
• 12-volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, gasket, and seal for secure installation
• Push-in outlet with 0.313 inch outside diameter and blade-type male terminals (4 terminals)
• Standard replacement grade with average flow rating of 21 and system pressure of 47 psi

Technical Specifications and Features

The Delphi FG0922 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a push-in outlet type with a single outlet port measuring 0.313 inches in diameter. The module includes a fuel pressure regulator to maintain a maximum pressure of 78 psi and a system pressure of 47 psi, ensuring stable fuel delivery under various driving conditions. The assembly comes with a gasket and seal to prevent leaks and a fuel level sender assembly with a float arm for accurate fuel gauge readings. Electrical connections are made via four male blade terminals, supporting reliable current flow with an average current draw of 14 amps. Resistance values range from 111 ohms when empty to 4 ohms when full, reflecting the fuel level sender's operation.

Applications and Common Issues Addressed

• Restores proper fuel pressure and flow in Lexus Highlander, RX330, RX350, and compatible Toyota models
• Resolves fuel delivery interruptions caused by worn or failing fuel pumps
• Corrects inaccurate fuel gauge readings with integrated fuel level sender assembly
• Eliminates fuel leaks with included gasket and seal components
• Improves engine performance by maintaining consistent system pressure

Installation Notes and Tips

Installation of the Delphi FG0922 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket and seal to secure the module and prevent leaks. Verify that the blade terminals are properly connected to avoid electrical issues. It is recommended to inspect the fuel strainer and replace it if clogged, as this module includes an internal strainer. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty Information

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for fit, form, and function. The FG0922 is tested for electrical and mechanical reliability to ensure consistent performance. While specific warranty terms may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for detailed warranty coverage.
