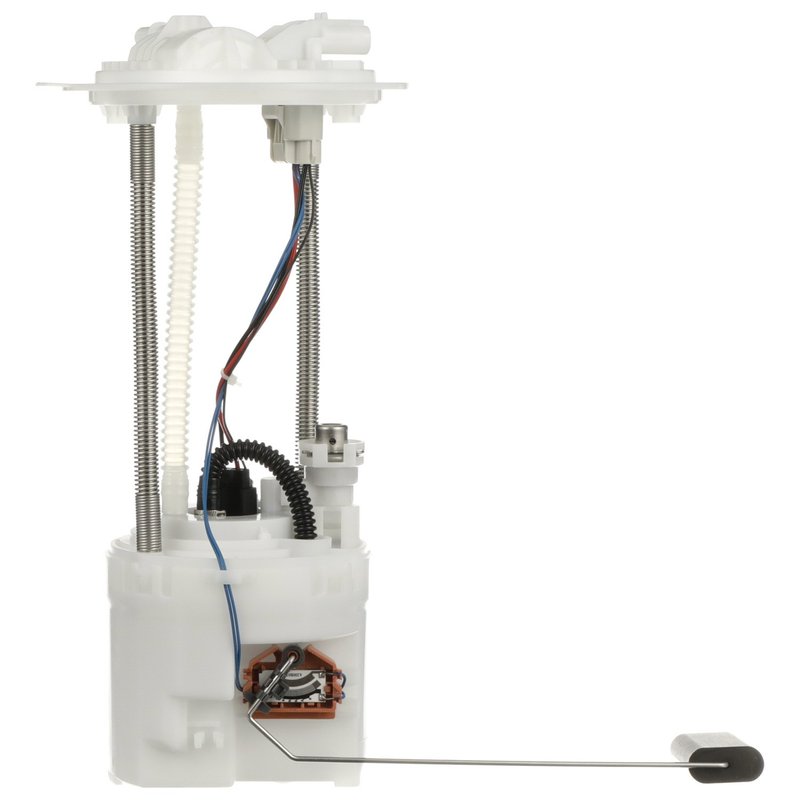

Delphi FG0924 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Jeep Wrangler

The Delphi FG0924 fuel pump module assembly is designed specifically for Jeep Wrangler models requiring a dependable in-tank electric fuel pump. Engineered to maintain consistent fuel delivery and pressure, this module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0V operation suitable for gasoline engines
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Maximum pressure rating of 60 psi and system pressure of 58 psi for stable fuel flow
• Internal strainer and quick connect outlet for efficient fuel filtration and easy installation
• Comes with gasket and seal to prevent leaks and ensure secure fitment
• Blade-type male terminals with four connections for reliable electrical contact
• Average flow rating of 34 and average current draw of 10 amps for balanced performance

Detailed Product Description

The Delphi FG0924 fuel pump module assembly is an electric in-tank pump designed to meet the fuel delivery requirements of Jeep Wrangler vehicles. Operating at 12 volts, this module features a built-in fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The pump supports gasoline fuel types and includes an internal strainer to filter contaminants before fuel reaches the engine. Its quick connect outlet with a 0.375-inch outside diameter allows for straightforward connection to the fuel line. The assembly includes a gasket and seal to ensure a leak-free installation, while the blade-type male terminals with four connections provide secure electrical interfacing. With a maximum pressure of 60 psi and a system pressure of 58 psi, the FG0924 maintains consistent fuel flow and pressure, supporting engine performance and efficiency.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Jeep Wrangler models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions caused by clogged or damaged strainers
• Eliminates leaks and poor connections with included gasket and seal

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Jeep Wrangler model year before installation
• Use the included gasket and seal to prevent fuel leaks and maintain system integrity
• Handle the float arm carefully to avoid damage to the fuel level sender assembly
• Check all electrical connections for secure fitment of blade terminals

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for quality and durability. The FG0924 is a standard replacement grade part designed to provide reliable service life. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship to ensure customer confidence in performance.
