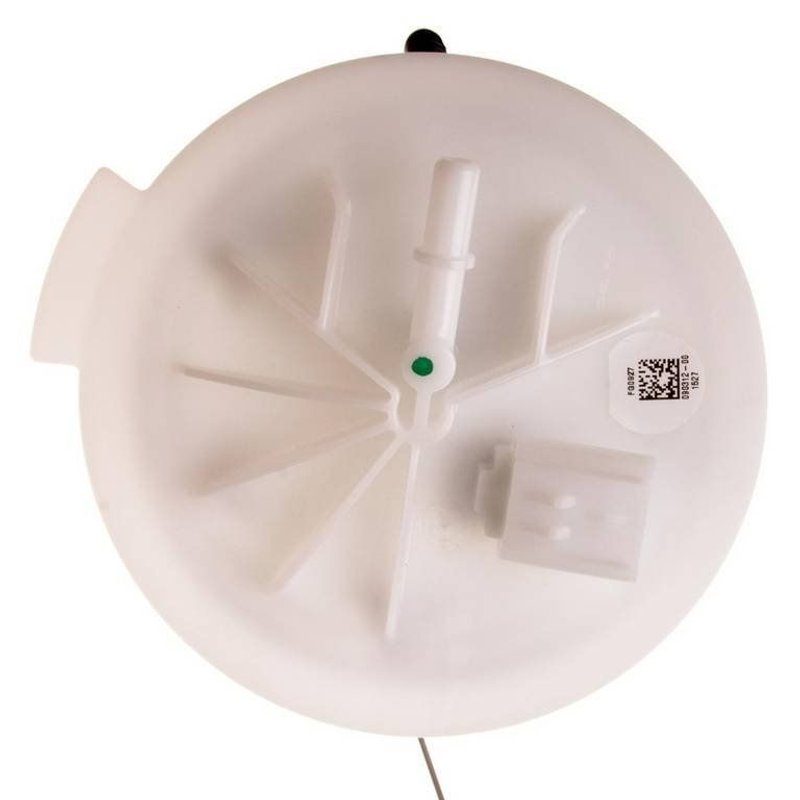

Delphi FG0927 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Chrysler PT Cruiser

The Delphi FG0927 fuel pump module assembly is designed specifically for Chrysler PT Cruiser models requiring a reliable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes regulator, internal strainer, and gasket for secure installation
• Features a 0.375-inch outlet outside diameter with quick connect outlet
• Designed for in-tank installation with blade-type male terminals (4 terminals)
• System pressure rated at 58 psi with a maximum pressure of 78 psi
• Average flow rating of 21 and average current draw of 14 amps

Technical Details and Features

The Delphi FG0927 fuel pump module assembly is engineered to meet the fuel delivery requirements of Chrysler PT Cruiser vehicles. It operates on a 12-volt electrical system and is compatible with gasoline fuel. The module includes a built-in fuel level sender assembly with resistance values ranging from 70 ohms (empty) to 1050 ohms (full), providing accurate fuel level readings. The internal strainer and regulator are integrated to maintain clean fuel flow and consistent pressure, rated at 58 psi system pressure and a maximum of 78 psi. The pump features a quick connect outlet with a 0.375-inch outside diameter and four blade-type male terminals for secure electrical connections. This standard replacement grade module comes with a gasket and instruction sheet to assist with installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Chrysler PT Cruiser models requiring an in-tank electric fuel pump. It is designed to replace original equipment fuel pumps that exhibit issues such as inconsistent fuel pressure or inaccurate fuel level readings.

• Resolves fuel delivery interruptions and engine hesitation
• Corrects inaccurate or fluctuating fuel gauge readings
• Eliminates fuel pump noise and electrical connection problems
• Prevents engine stalling caused by low fuel pressure
• Addresses fuel contamination issues with internal strainer

Installation Notes and Tips

When installing the Delphi FG0927 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. The module is designed for in-tank installation and includes a gasket for sealing. Use the provided instruction sheet for proper alignment and connection of the four blade-type male terminals. Verify that the quick connect outlet is securely attached to the fuel line to prevent leaks. It is recommended to inspect the fuel tank and clean any debris before installation to maximize pump longevity.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for Chrysler PT Cruiser vehicles. This FG0927 module is a standard replacement part that undergoes rigorous testing to ensure reliable performance and durability. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
