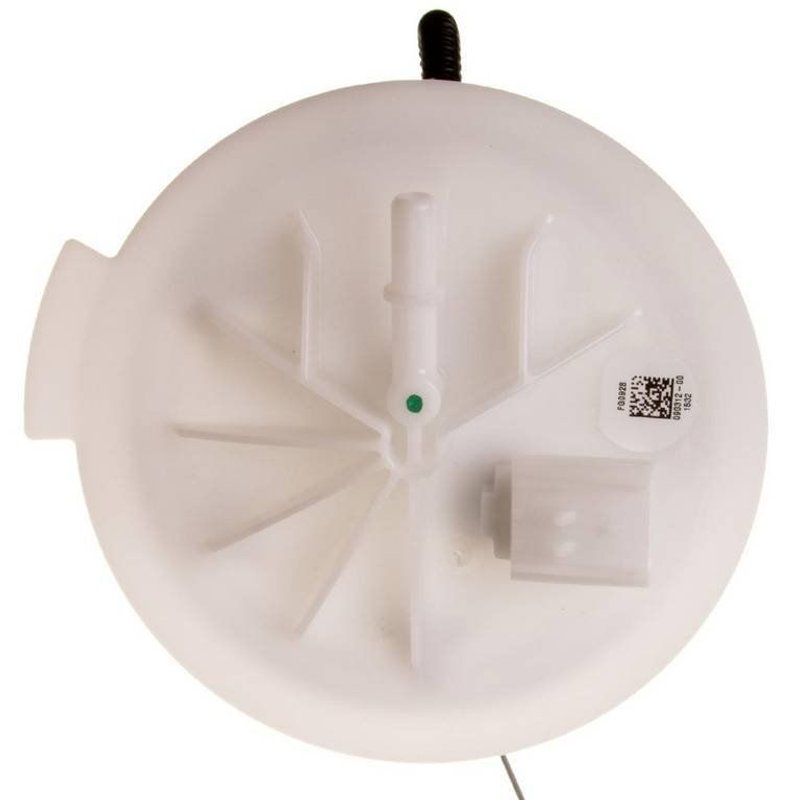

Delphi FG0928 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler PT Cruiser

The Delphi FG0928 fuel pump module assembly is designed specifically for Chrysler PT Cruiser models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• In-tank design with internal strainer and fuel level sender assembly included
• Maximum pressure rating of 62 psi and system pressure of 58 psi
• Quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connections
• Includes gasket and seal for proper installation
• Standard replacement grade for Chrysler PT Cruiser fuel systems

Detailed Product Features and Specifications

The Delphi FG0928 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet, facilitating efficient fuel flow with an average flow rating of 21 liters per hour. The module includes a fuel level sender assembly with resistance values ranging from 70 ohms (empty) to 1050 ohms (full), providing accurate fuel gauge readings. The assembly comes with a gasket and seal to ensure a leak-free installation, while the four male blade terminals support reliable electrical connections. Designed for in-tank installation, this module maintains system pressure at 58 psi, with a maximum pressure capacity of 62 psi, suitable for Chrysler PT Cruiser fuel delivery requirements.

Compatible Applications and Common Use Cases

• Replacement of faulty or worn fuel pump modules in Chrysler PT Cruiser vehicles
• Resolving fuel delivery issues such as engine stalling or hesitation
• Fixing inaccurate fuel level readings due to sender assembly failure
• Addressing low fuel pressure problems affecting engine performance
• Repairing fuel pump noise or intermittent operation in PT Cruiser models

Installation Notes and Tips

When installing the Delphi FG0928 fuel pump module assembly, ensure the vehicle's fuel tank is properly drained and cleaned to prevent contamination. Use the included gasket and seal to maintain a secure and leak-free fit. Verify electrical connections with the four male blade terminals are tight and corrosion-free. This module is designed for in-tank installation, so handle the unit carefully to avoid damage to the internal strainer and fuel level sender assembly. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures to ensure proper fitment and operation.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for Chrysler PT Cruiser vehicles. The FG0928 part is a standard replacement grade component, tested for durability and consistent performance under normal operating conditions. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to provide confidence in the product’s reliability.
