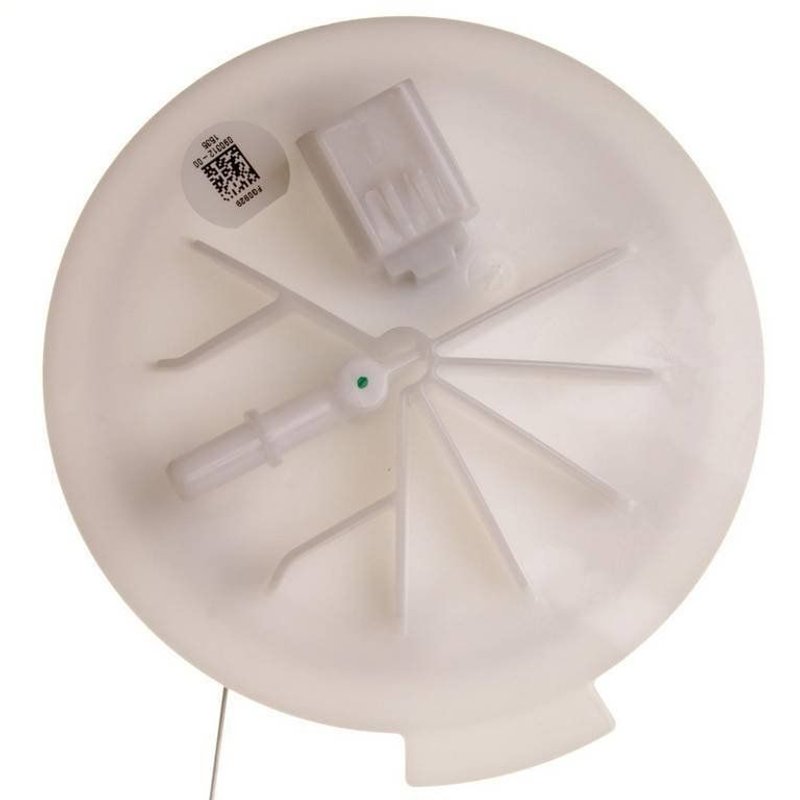

Delphi FG0929 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Jeep Liberty

The Delphi FG0929 fuel pump module assembly is designed specifically for Jeep Liberty models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals with four connections for reliable electrical contact
• Maximum pressure rating of 78 psi and system pressure of 58 psi
• Average flow rating of 21 gallons per hour and average current draw of 14 amps

Detailed Product Description

The Delphi FG0929 fuel pump module assembly is engineered as a standard replacement part for Jeep Liberty vehicles. It features an internal strainer inlet and a quick connect outlet designed for efficient fuel flow and filtration. The module includes a fuel level sender assembly with resistance values ranging from 220 ohms (empty) to 20 ohms (full), providing accurate fuel gauge readings. The assembly comes complete with a gasket and strainer to ensure a proper seal and prevent contaminants from entering the fuel system. Its blade-type male terminals with four connections facilitate secure electrical integration within the vehicle's fuel delivery system.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Jeep Liberty fuel systems
• Resolves fuel gauge inaccuracies caused by faulty sender units
• Eliminates fuel delivery interruptions due to worn or damaged pump modules
• Prevents fuel contamination with included internal strainer
• Replaces leaking or damaged fuel pump assemblies to maintain system integrity

Installation Notes and Tips

Installation of the Delphi FG0929 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included gasket should be replaced to maintain a proper seal. Verify electrical connections match the blade-type male terminals and confirm the quick connect outlet is securely attached. Follow all safety precautions when handling fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable operation within Jeep Liberty fuel systems. Warranty coverage details should be confirmed with the product documentation or supplier.
