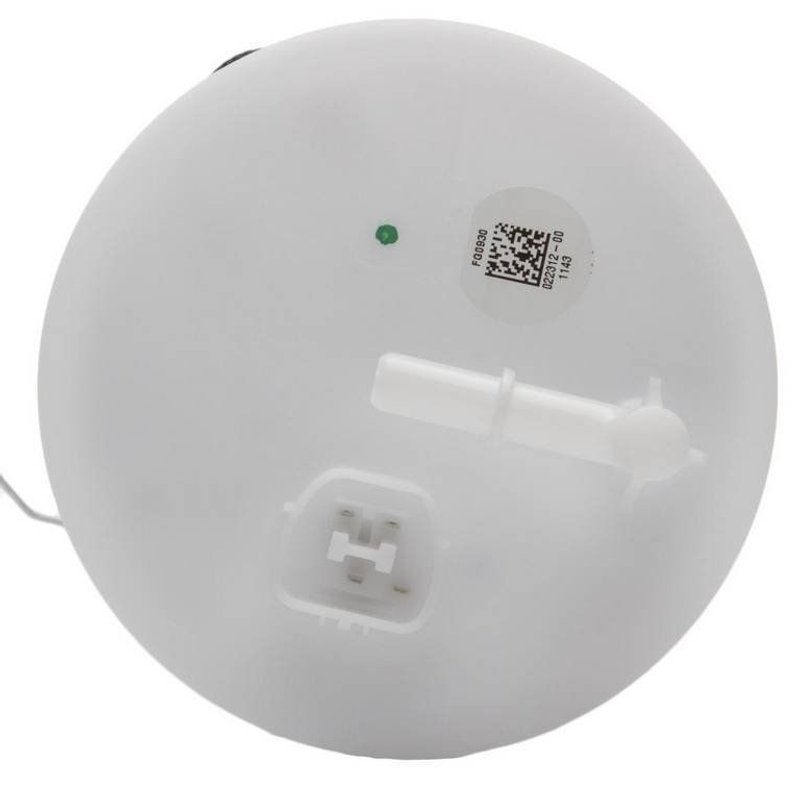

Delphi FG0930 Fuel Pump Module Assembly

Delphi FG0930 Fuel Pump Module Assembly

The Delphi FG0930 fuel pump module assembly is a standard replacement for select Honda and Acura applications, including the 2005-2008 Honda Pilot and 2006 Acura MDX. Built with Delphi’s OE heritage and fuel system experience, it combines the pump, sender, regulator, seal, lock ring, and strainer in one in-tank assembly for a direct service replacement.

Key Features

• In-tank electric fuel pump module assembly for gas applications
• Includes fuel level sender assembly, regulator, strainer, gasket or seal, and lock ring
• Quick-connect outlet with one outlet and 0.375 in. outside diameter
• 12V operation with 59 psi system pressure and 78 psi maximum pressure
• Blade terminals, male terminal ends, and 4-terminal design
• Standard replacement part for select Honda Pilot and Acura MDX fuel systems
• Delphi FG0930 cross-references Spectra Premium SP8022M for the same application

Detailed Description

Delphi FG0930 is engineered as an in-tank fuel pump module assembly for gasoline vehicles that need a complete fuel delivery service part. It is built around Delphi’s OE-focused fuel system knowledge and is specified with a fuel level sender, internal strainer, pressure regulator, and quick-connect outlet to support proper fuel delivery and tank-level reporting. This part number, FG0930, is listed for the 2005-2008 Honda Pilot and 2006 Acura MDX, making it a direct-fit choice for common fuel system repair work on these platforms.

With a 12.0-volt electric pump, 21 average flow rating, and 14 average current draw, the assembly is intended to restore consistent fuel supply and sender operation in vehicles experiencing pump wear or fuel level inaccuracies. The package contents include the fuel pump module assembly with float arm, seal, lock ring, and instruction sheet. Delphi FG0930 is also referenced by multiple interchange numbers, including Spectra Premium SP8022M.

What It Is Used For

• Restoring fuel pressure on a 2005-2008 Honda Pilot or 2006 Acura MDX
• Correcting hard-start or no-start conditions tied to a weak in-tank pump
• Addressing fuel gauge readings caused by a worn sender assembly
• Replacing a noisy, inconsistent, or failing fuel pump module
• Servicing a leaking tank seal or worn module connection point

Installation Notes and Tips

Before installation, clean the fuel tank thoroughly to prevent future seal problems, as noted in the fitment information. Verify connector style, outlet type, and system pressure requirements before installation. Because this is an in-tank module assembly, proper tank access and careful handling of the seal and lock ring are important for a reliable repair.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplies components to major automakers, with OE heritage and application knowledge built into its aftermarket fuel system parts. FG0930 is a standard replacement fuel pump module assembly built for the listed Honda and Acura applications.
