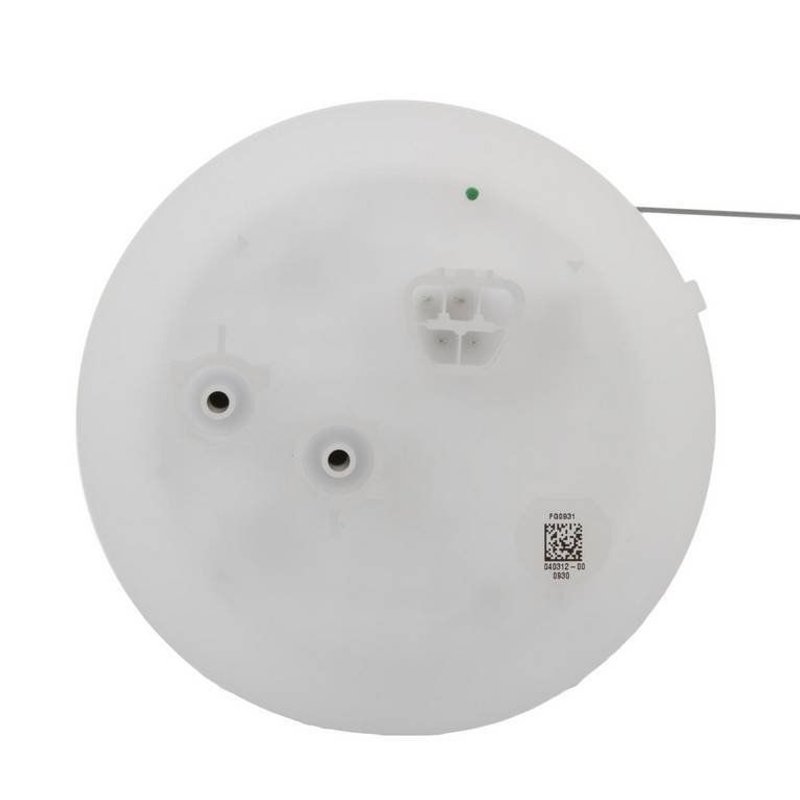

Delphi FG0931 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Toyota Sequoia and Tundra

The Delphi FG0931 fuel pump module assembly is designed to provide consistent fuel delivery for Toyota Sequoia and Tundra models. Engineered for gas-powered vehicles, this in-tank electric fuel pump ensures optimal performance and fuel efficiency.

Key Features of Delphi FG0931 Fuel Pump Module

• 12.0 Volt electric pump suitable for gas fuel systems
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Internal strainer and external quick connect outlet for efficient fuel filtration and connection
• Regulator and gasket included to maintain system pressure and prevent leaks
• Blade-type male terminals with four connections for secure electrical interface
• Maximum pressure rating of 78 psi and system pressure of 41 psi for stable fuel delivery
• Average flow rating of 21 and average current draw of 14 amps
• Standard replacement grade designed specifically for Toyota Sequoia and Tundra

Detailed Description of the Delphi FG0931 Fuel Pump Module

This fuel pump module assembly is an electric, in-tank unit engineered to meet the fuel delivery requirements of Toyota Sequoia and Tundra vehicles. The pump operates at 12 volts and features an internal strainer to protect the fuel system from contaminants. The quick connect outlet with a 0.375-inch outside diameter allows for straightforward installation and reliable fuel flow. The included fuel level sender assembly with float arm provides accurate fuel level readings, while the regulator maintains consistent pressure up to 78 psi. The four blade-type male terminals ensure a secure electrical connection, supporting the pump’s average current draw of 14 amps. This module is a standard replacement part, designed to restore proper fuel delivery and system function.

Common Applications and Issues Addressed

• Restores fuel delivery in Toyota Sequoia and Tundra models experiencing fuel starvation
• Replaces faulty or worn fuel pump modules causing engine stalling or hesitation
• Solves inaccurate fuel gauge readings with integrated fuel level sender assembly
• Addresses fuel pressure inconsistencies affecting engine performance
• Prevents fuel leaks with included gasket and regulator components

Installation Notes and Tips

• Compatible with Toyota Sequoia and Tundra gas models; verify vehicle year and engine specifications before installation
• Ensure electrical connections match the four blade-type male terminals for proper fit
• Use the included gasket to prevent fuel leaks during installation
• Handle the internal strainer carefully to avoid damage and maintain filtration efficiency
• Follow vehicle manufacturer guidelines for fuel system depressurization before removal

Quality Assurance and Warranty Information

The Delphi FG0931 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It undergoes rigorous testing to ensure reliable fuel delivery and durability under normal operating conditions. This part is backed by a standard replacement warranty, providing confidence in its performance and longevity when installed in compatible Toyota Sequoia and Tundra vehicles.
