Delphi FG0938 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

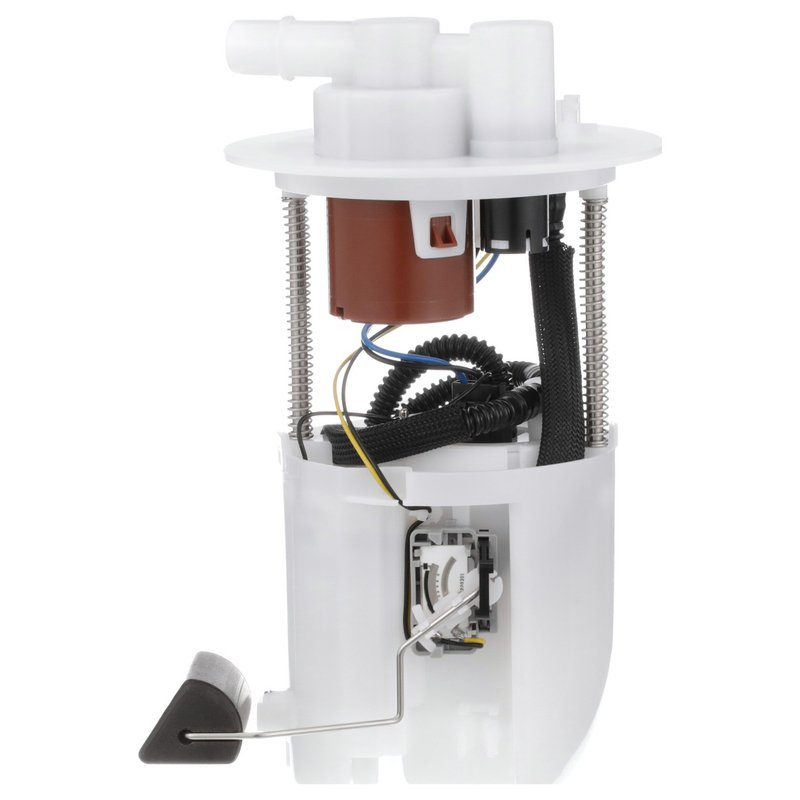

The Delphi FG0938 fuel pump module assembly is designed for reliable fuel delivery in Toyota Corolla and Matrix models. This in-tank electric fuel pump ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Toyota Corolla and Matrix vehicles
• 12-volt electric pump with a maximum pressure of 65 psi
• Includes fuel level sender assembly and internal strainer
• Quick connect outlet with 0.375 inch outside diameter
• Comes with gasket and seal for secure installation

Technical Features and Specifications

The Delphi FG0938 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The pump delivers an average flow rating of 26 liters per hour and maintains a system pressure of 47 psi, with a maximum pressure rating of 65 psi. The assembly includes a regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. Electrical connections use four male blade terminals, ensuring compatibility with factory wiring harnesses. The pump’s resistance ranges from 412 ohms when empty to 15 ohms when full, with an average current draw of 6 amps.

Application and Common Issues Addressed

• Restores proper fuel pressure in Toyota Corolla and Matrix models
• Resolves fuel delivery problems such as engine stalling or hesitation
• Fixes inaccurate fuel gauge readings with included sender assembly
• Eliminates fuel pump noise caused by worn or failing components
• Prevents engine performance issues related to clogged or damaged fuel pumps

Installation Notes and Tips

Installation of the Delphi FG0938 fuel pump module assembly requires removal of the fuel tank. Ensure the gasket and seal included in the package are properly seated to prevent leaks. The quick connect outlet simplifies fuel line connections, but verify secure attachment to avoid fuel leaks. Handle the float arm carefully to maintain accurate fuel level readings. It is recommended to follow the vehicle manufacturer’s service manual for safe and correct installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Toyota Corolla and Matrix vehicles. It includes a fuel level sender assembly and internal strainer to ensure long-lasting performance. Delphi provides a limited warranty covering defects in materials and workmanship, supporting reliability and peace of mind for professional repairs and maintenance.
