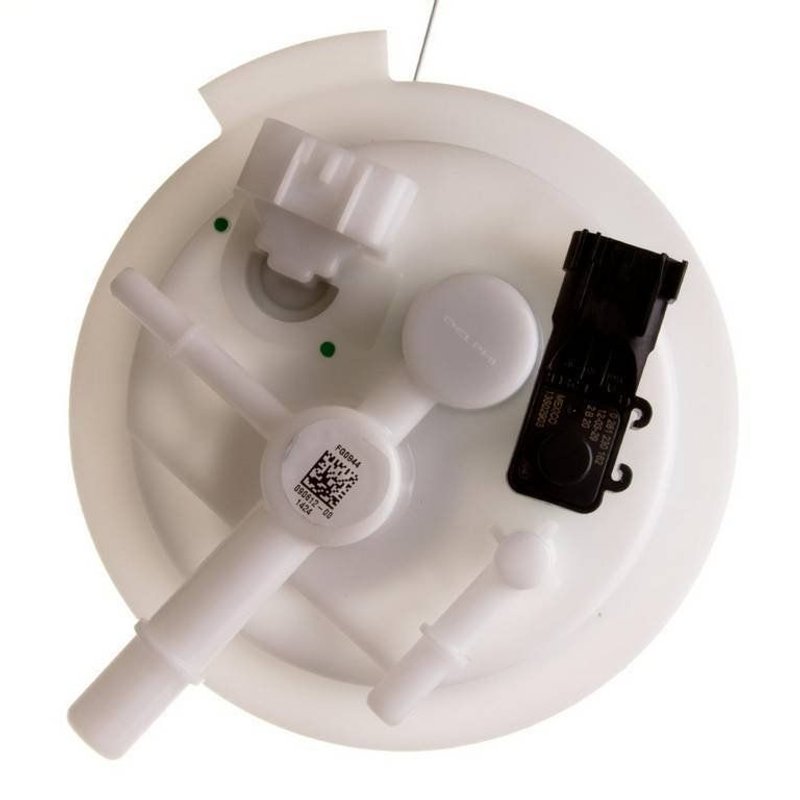

Delphi FG0944 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG0944 fuel pump module assembly is designed to provide consistent fuel delivery for Chevrolet Silverado and GMC Sierra trucks. Engineered for in-tank installation, this electric fuel pump module ensures optimal fuel pressure and flow for gas-powered engines.

• Compatible with Chevrolet Silverado 1500, 2500 HD, 3500 HD and GMC Sierra 1500, 2500 HD, 3500 HD models
• 12-volt electric pump with a maximum pressure of 81 psi and system pressure of 62 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Equipped with internal strainer and quick connect outlet type for efficient fuel filtration and connection
• Comes with gasket and seal to ensure leak-free installation
• Three male pin terminals with 3-terminal quantity for secure electrical connections
• Designed for gasoline fuel systems with an average flow rating of 21 and average current draw of 15 amps

Technical Details and Features

The Delphi FG0944 fuel pump module assembly is an electric in-tank pump designed specifically for gas engines in Chevrolet Silverado and GMC Sierra trucks. It features a 0.375-inch outlet outside diameter and quick connect outlet type, facilitating straightforward installation and reliable fuel delivery. The module includes an internal strainer to prevent contaminants from entering the fuel system, enhancing engine performance and longevity. The fuel level sender assembly with float arm is integrated to provide accurate fuel level readings on the dashboard. This module operates at 12 volts with a maximum pressure rating of 81 psi and maintains a system pressure of 62 psi, ensuring consistent fuel supply under various driving conditions.

Applications and Problem Solving

• Replaces faulty or failing fuel pump modules in Chevrolet Silverado and GMC Sierra trucks
• Resolves issues with inconsistent fuel pressure or engine stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender assembly
• Eliminates fuel delivery interruptions caused by clogged or damaged internal strainers
• Addresses electrical connection problems with secure 3-pin male terminals

Installation Notes and Tips

Installation of the Delphi FG0944 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure the gasket and seal included in the package are properly seated to prevent leaks. Use appropriate tools for disconnecting the quick connect outlets and electrical terminals. Verify that the fuel system is depressurized before beginning installation to avoid fuel spray. After installation, check for leaks and proper fuel pressure to confirm correct operation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. This standard replacement grade part includes a fuel level sender assembly and internal strainer to maintain system integrity. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for detailed warranty information.
