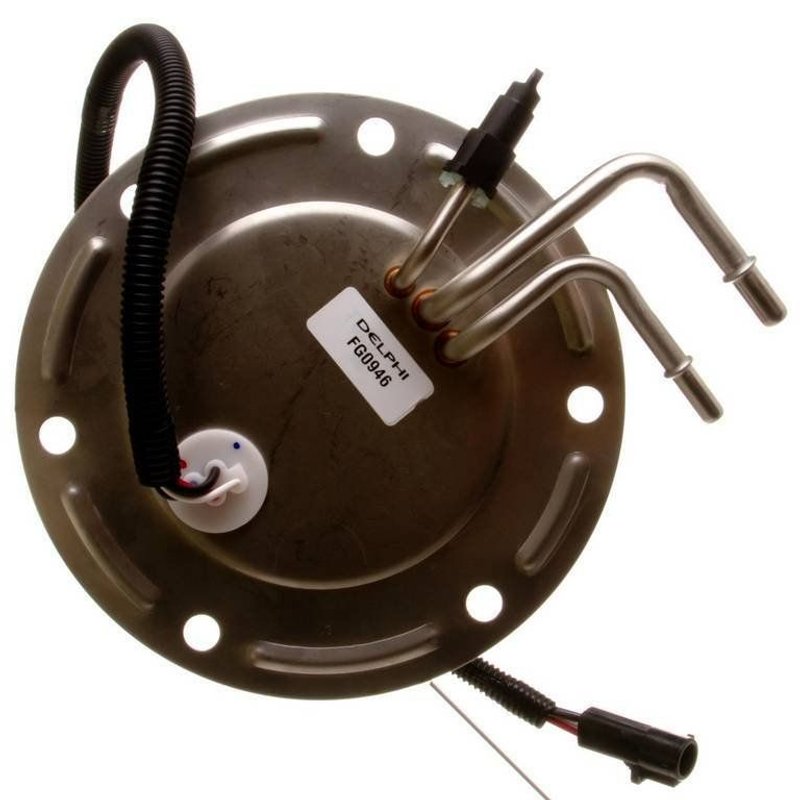

Delphi FG0946 Fuel Pump Module Assembly

Delphi FG0946 Fuel Pump Module Assembly Overview

The Delphi FG0946 fuel pump module assembly is designed for reliable fuel delivery in select Ford Econoline models. This in-tank electric fuel pump module ensures consistent fuel flow and pressure, supporting optimal engine performance for your Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Econoline, and E-350 Econoline Club Wagon vehicles.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ford E-150, E-250, and E-350 Econoline models
• 12-volt operation with a maximum pressure of 80 psi and system pressure of 44 psi
• Includes external strainer inlet and quick connect outlet (0.375 inch diameter)
• Four male pin terminals with included gasket and strainer for secure installation

Technical Specifications and Features

The Delphi FG0946 fuel pump module operates at 12 volts and delivers an average flow rating of 27 gallons per hour, suitable for gas-fueled engines. It features an external strainer inlet type and two quick connect outlets with a 0.375-inch outside diameter, ensuring efficient fuel delivery. The module includes a fuel level sender assembly with float arm, providing accurate fuel level readings. The pump’s resistance ranges from 15 ohms when empty to 160 ohms when full, with an average current draw of 9 amps. This standard replacement part comes with a gasket or seal and strainer included, but does not include a regulator or lock ring.

Compatible Ford Econoline Models

This fuel pump module assembly is compatible with the following Ford Econoline vehicles:

• Ford E-150 Econoline
• Ford E-150 Econoline Club Wagon
• Ford E-250 Econoline
• Ford E-350 Econoline
• Ford E-350 Econoline Club Wagon

Common Applications and Problem Resolution

The Delphi FG0946 fuel pump module assembly is used to address several fuel system issues, including:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure causing engine performance problems
• Fuel pump noise or electrical resistance irregularities
• Clogged or damaged fuel strainer affecting fuel flow

Installation Notes and Tips

Installation of the Delphi FG0946 requires removal of the fuel tank to access the in-tank pump module. Ensure the gasket or seal included is properly seated to prevent leaks. Verify the four-pin male terminals are securely connected and the quick connect outlets are properly engaged. Since the module does not include a regulator or lock ring, reuse existing components if applicable or source replacements separately. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. This FG0946 module is a standard replacement grade part designed to provide reliable service. It includes a fuel level sender assembly and comes with installation instructions. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
