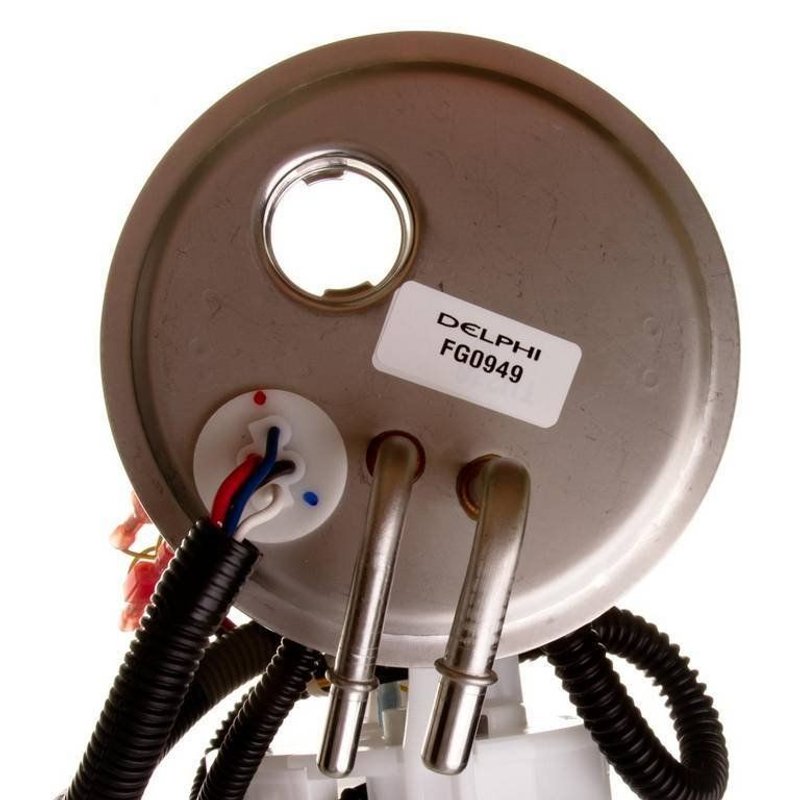

Delphi FG0949 Fuel Pump Module Assembly

Delphi FG0949 Fuel Pump Module Assembly

The Delphi FG0949 fuel pump module assembly is a standard replacement for select Ford Taurus and Mercury Sable applications. Built for in-tank gasoline systems, it combines the pump, fuel level sender, float arm, seal, clips, and instruction sheet in one service assembly.

Key Features

• In-tank electric fuel pump module assembly for gasoline applications
• 12.0-volt operation with a maximum pressure rating of 80.0
• System pressure: 39 psi; average flow rating: 32
• Fuel level sender assembly included with 7-pin male terminal design
• Quick-connect outlet type with 2 outlets and 0.375 in. outlet outside diameter
• Strainer included; gasket or seal included
• Standard replacement grade for OE-style service

Detailed Description

Delphi FG0949 is engineered for in-tank fuel delivery on gasoline vehicles and reflects Delphi’s OE heritage and application knowledge. This fuel pump module assembly is built for 1998-1999 Ford Taurus and 1998 Mercury Sable models, making it a direct service part for common fuel delivery and fuel level sender repairs. The FG0949 part number is also referenced in aftermarket interchange listings for related applications, and the Delphi FG0949 designation is useful when matching the correct module for service work.

This assembly includes the fuel pump module with float arm, seal, clips, and instruction sheet. It uses an external strainer, quick-connect outlet, and pin-style terminals, with the fuel level sender integrated into the module. Delphi FG0949 is a practical choice when replacing a worn in-tank pump on a Ford Taurus or Mercury Sable and when restoring consistent fuel pressure and fuel gauge operation.

What It Helps Fix

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Low fuel pressure conditions in the tank-mounted system
• Inaccurate fuel gauge readings from a failing sender assembly
• Fuel starvation symptoms under load

Installation Notes and Tips

Fits 1998-1999 Ford Taurus, N/A. Fits 1998 Mercury Sable, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify connector style, outlet configuration, and system pressure requirements before installation. This part cross-references Airtex Fuel Pumps (e.g., E2490) and Bosch (e.g., 69548) for the same application.

Quality Assurance

Delphi draws on more than a century of OE experience and supplies components to major automakers, with OE-based engineering applied to aftermarket replacement parts. The FG0949 is a standard replacement fuel pump module assembly built to support dependable fuel system service.
