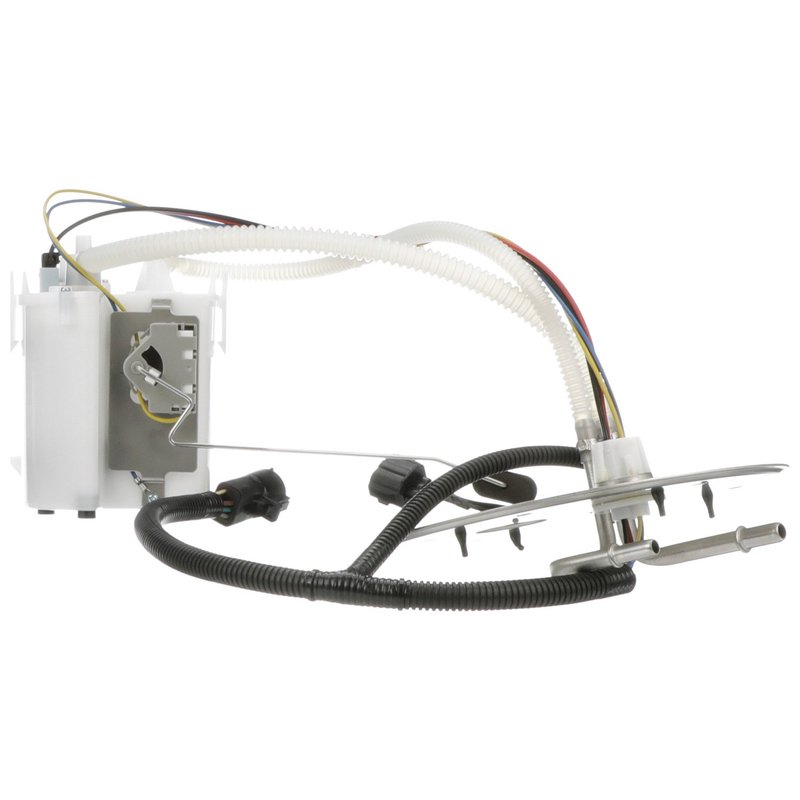

Delphi FG0951 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford F-350 Super Duty

The Delphi FG0951 fuel pump module assembly is designed specifically for Ford F-350 Super Duty trucks, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for gasoline engines requiring a 12-volt power supply.

Key Features of Delphi FG0951 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates at 12.0 volts suitable for standard automotive electrical systems
• Designed for gasoline fuel type applications
• Maximum pressure rating of 87 psi with a system pressure of 44 psi
• Includes gasket, lock ring, and external strainer for secure installation and filtration
• Seven male pin terminals for reliable electrical connections
• Quick connect outlet type with two outlets for efficient fuel flow
• Fuel level sender assembly with float arm included for accurate fuel gauge readings
• Average current draw of 9 amps and flow rating of 25 gallons per hour
• Standard replacement grade ensuring compatibility and durability

Detailed Description of the Delphi FG0951 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0951) is engineered as an in-tank electric pump designed to meet the fuel delivery demands of Ford F-350 Super Duty trucks. The module features an external strainer inlet type and a quick connect outlet, facilitating easy installation and maintenance. The inclusion of a fuel level sender assembly with a float arm allows for precise fuel level monitoring, which is critical for vehicle operation and fuel management. The pump operates at 12 volts and supports gasoline fuel systems, delivering a maximum pressure of 87 psi and maintaining a system pressure of 44 psi to ensure consistent engine performance. The seven-pin male terminal configuration provides secure electrical connections, while the included gasket and lock ring help maintain a leak-free seal within the fuel tank.

Common Applications and Issues Addressed

• Replacement of failing or noisy fuel pumps in Ford F-350 Super Duty trucks
• Resolving inconsistent fuel pressure or engine stalling due to fuel delivery problems
• Fixing inaccurate fuel gauge readings caused by faulty fuel level sender assemblies
• Addressing fuel leaks or poor sealing within the fuel tank assembly
• Upgrading to a reliable standard replacement pump for improved fuel system performance

Installation Notes and Tips

When installing the Delphi FG0951 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump module, taking note of the seven-pin terminal connections and fuel line fittings. Use the included gasket and lock ring to secure the new module in place, ensuring a proper seal to prevent leaks. Verify that the quick connect outlets are firmly attached to the fuel lines. After installation, check for proper fuel pressure and confirm that the fuel level sender assembly is functioning correctly to avoid gauge inaccuracies.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM specifications, providing reliable performance and durability. The FG0951 is a standard replacement grade part designed to maintain the integrity of the fuel delivery system in Ford F-350 Super Duty trucks. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
