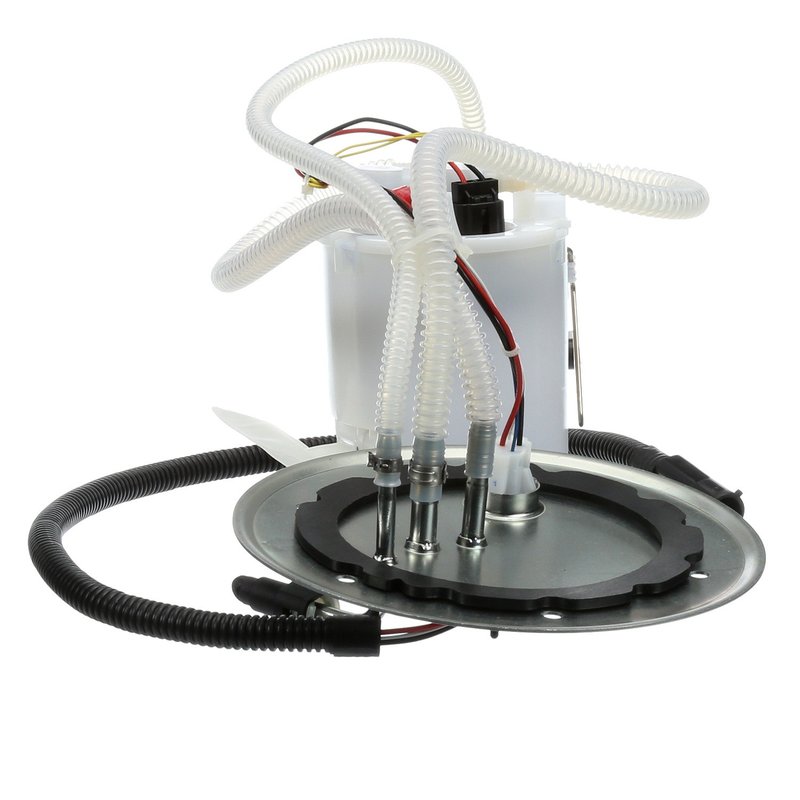

Delphi FG0952 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0952 fuel pump module assembly is designed for reliable fuel delivery in Ford F-250 Super Duty and F-350 Super Duty trucks. This electric in-tank fuel pump ensures consistent fuel flow and pressure for optimal engine performance.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Electric pump type with 12.0 volts operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 80 psi and system pressure of 44 psi
• Features a 0.375 inch outlet outside diameter with quick connect outlet type
• Includes external strainer and gasket for secure installation
• Four male pin terminals for electrical connection
• Average flow rating of 29 and average current draw of 6 amps

Technical Details and Specifications

The Delphi FG0952 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with a maximum pressure of 80 psi and a system pressure of 44 psi, ensuring steady fuel delivery under various driving conditions. The module includes an external strainer inlet type and a quick connect outlet with three outlets, each having an outside diameter of 0.375 inches. The assembly comes with a fuel level sender assembly, including a float arm, and a gasket or seal to maintain a secure fit within the fuel tank. Electrical connections are made via four male pin terminals, supporting reliable communication with the vehicle’s fuel system. Resistance values range from 15 ohms when empty to 160 ohms when full, providing accurate fuel level readings.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Ford F-250 Super Duty and F-350 Super Duty trucks. It is designed to replace the original fuel pump module in these models, ensuring proper fuel delivery and system pressure for gasoline engines. The Delphi FG0952 is suitable for standard replacement needs in these heavy-duty trucks.

• Resolves fuel delivery issues such as engine sputtering or stalling
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel pump noise caused by worn or damaged components
• Prevents fuel system leaks with included gasket and strainer

Installation Notes and Tips

Installation of the Delphi FG0952 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket or seal to prevent leaks and verify that the external strainer is properly positioned to avoid fuel contamination. Connect the four male pin terminals securely to maintain electrical integrity. Follow the vehicle manufacturer’s torque specifications for the fuel pump module lock ring, if applicable, although this assembly does not include a lock ring. After installation, check for fuel leaks and proper fuel pressure before starting the engine.

Quality Assurance and Warranty

Delphi fuel pump module assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The FG0952 part is a standard replacement grade component designed for durability and consistent performance. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
