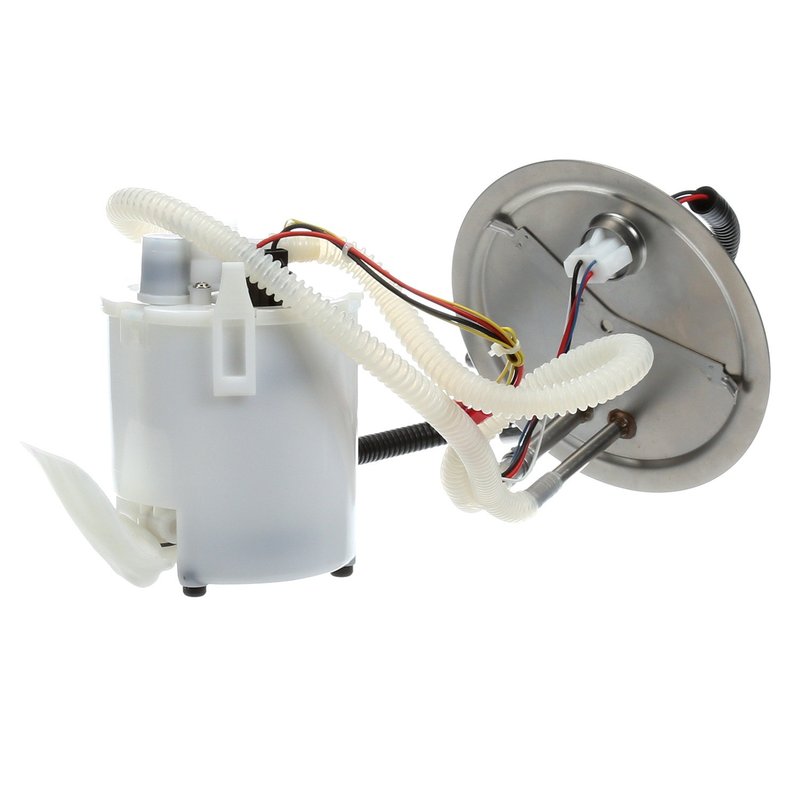

Delphi FG0953 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0953 fuel pump module assembly is designed for reliable fuel delivery in Ford F-250 Super Duty and F-350 Super Duty trucks. This in-tank electric fuel pump ensures consistent fuel flow and pressure to support your vehicle's performance needs.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• 12.0 Volt electric fuel pump with a maximum pressure of 100 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Features a 0.375 inch outlet outside diameter with quick connect outlet type
• Equipped with an external strainer and inlet strainer for fuel filtration
• Comes with gasket/seal and strainer included for secure installation
• Four male pin terminals for electrical connection
• Average flow rating of 32 and system pressure of 44 psi

Technical Details and Specifications

The Delphi FG0953 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an average current draw of 6 amps, ensuring efficient fuel delivery. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The outlet has a quick connect type with two outlets, each having an outside diameter of 0.375 inches. The pump module is equipped with an external strainer and an inlet strainer to protect the fuel system from contaminants. The assembly includes a gasket or seal to maintain a secure and leak-free installation. Electrical connections are made via four male pin terminals, designed for compatibility with the vehicle's wiring harness. The resistance values range from 15 ohms when empty to 160 ohms when full, supporting precise fuel level monitoring.

Applications and Problem Solving

• Restores proper fuel delivery in Ford F-250 Super Duty and F-350 Super Duty trucks
• Resolves fuel pump failure symptoms such as engine stalling or no-start conditions
• Addresses inaccurate fuel level readings due to faulty sender assemblies
• Eliminates fuel pressure drops that cause poor engine performance
• Prevents fuel contamination issues with integrated strainer components

Installation Notes and Tips

Installation of the Delphi FG0953 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket or seal is properly seated to prevent leaks. Verify electrical connections match the four male pin terminals on the module. Use the included clips and follow the provided instructions carefully to secure the assembly. It is recommended to inspect the fuel tank and lines for debris before installation to avoid premature pump failure.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford Super Duty trucks. It undergoes rigorous testing to ensure durability and reliable operation under normal driving conditions. Delphi provides a limited warranty covering defects in materials and workmanship, offering peace of mind with your purchase.
