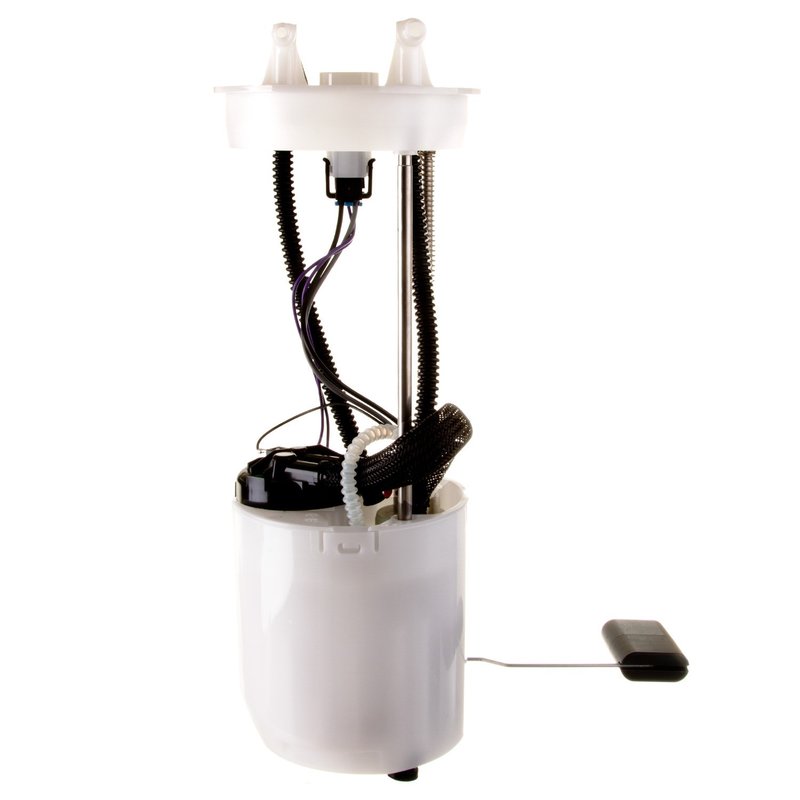

Delphi FG0957 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura MDX and Honda Pilot

The Delphi FG0957 fuel pump module assembly is designed to provide consistent fuel delivery for Acura MDX and Honda Pilot vehicles. Engineered as a direct replacement, this in-tank electric fuel pump ensures optimal performance and compatibility with your gas-powered vehicle.

Key Features of Delphi FG0957 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel flow connection
• Operates at 13.0 volts with an average current draw of 10 amps
• Designed for gasoline fuel type with a maximum pressure rating of 78 psi
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Equipped with 4 male blade terminals and quick connect outlet type for easy installation
• Comes with gasket, seal, and lock ring to ensure secure fitment and prevent leaks
• Standard replacement grade suitable for maintaining factory specifications
• Average flow rating of 40 liters per hour supports efficient engine operation

Detailed Description of the Delphi FG0957 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0957) is an electric in-tank pump designed specifically for Acura MDX and Honda Pilot models. It features a dual outlet quick connect system and an internal strainer to protect the fuel system from contaminants. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. With a system pressure of 54 psi and a maximum pressure capacity of 78 psi, this pump maintains consistent fuel delivery under various driving conditions. The 4 male blade terminals provide reliable electrical connections, while the included gasket, seal, and lock ring ensure a secure and leak-free installation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Acura MDX and Honda Pilot
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assembly
• Eliminates fuel delivery interruptions from clogged or damaged strainers
• Addresses electrical connection problems with durable blade terminals

Installation Notes and Tips

• Ensure vehicle compatibility with Acura MDX and Honda Pilot models before installation
• Handle the fuel pump module carefully to avoid damaging the internal strainer and float arm
• Replace the gasket and seal included in the package to prevent fuel leaks
• Verify all electrical connections are secure on the 4 blade terminals
• Follow manufacturer instructions for lock ring installation to secure the module in the fuel tank

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0957 is a standard replacement grade part designed to restore original fuel system performance. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
