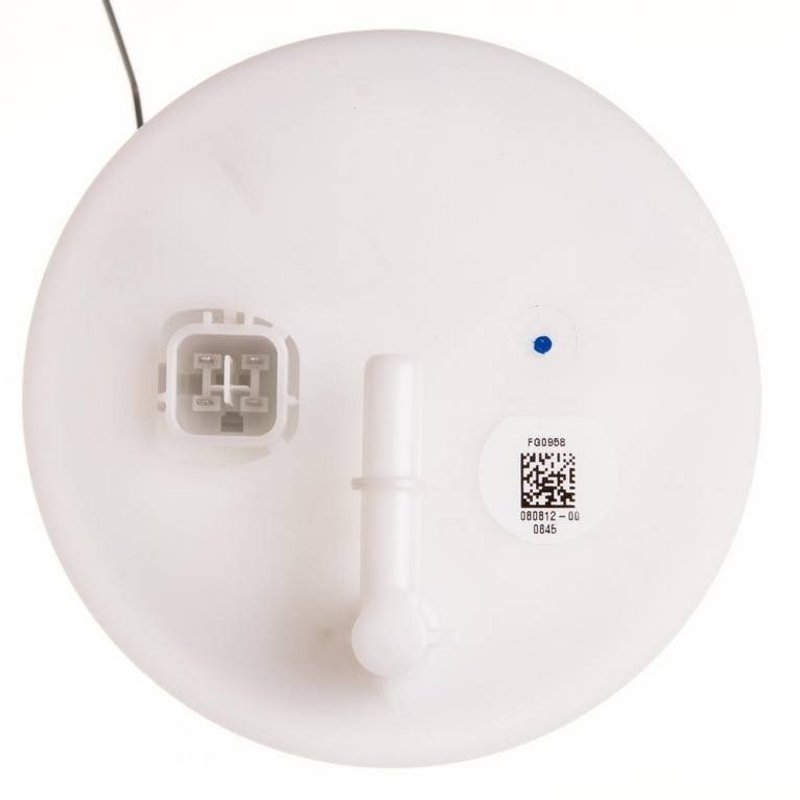

Delphi FG0958 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura and Honda Vehicles

The Delphi FG0958 fuel pump module assembly is designed specifically for Acura MDX, Honda Pilot, and Honda ZDX models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• 12.0 Volt electric pump with a maximum pressure of 78 psi
• Includes regulator, internal strainer, and fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Equipped with 4 male blade terminals and lock ring for secure installation
• Comes with gasket, seals, and strainer for a complete replacement

Technical Details and Features

The Delphi FG0958 fuel pump module assembly operates at a system pressure of 58 psi and an average flow rating of 21 liters per hour, suitable for gas fuel types. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy connection. The module includes a regulator to maintain consistent fuel pressure and a fuel level sender assembly with resistance values ranging from 780 ohms (empty) to 20 ohms (full), providing accurate fuel gauge readings. The pump draws an average current of 14 amps and uses four male blade terminals for electrical connections. The package contains the fuel pump module assembly with float arm, seals, lock ring, and installation instructions.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Acura MDX
• Honda Pilot
• Honda ZDX

It is designed to replace the original equipment fuel pump module in these models, ensuring proper fuel delivery and system pressure for reliable engine operation.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure fluctuations affecting engine performance
• Fuel pump noise or failure from worn internal components
• Leaks or poor sealing from damaged gaskets or seals

Installation Notes and Tips

Installation of the Delphi FG0958 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work. Use the included lock ring and gasket to secure the module and prevent leaks. Verify all electrical connections are properly seated on the four male blade terminals. Follow the provided instructions carefully to avoid damage to the internal strainer and float arm. It is recommended to inspect the fuel tank for debris before installation to prolong pump life.

Quality Assurance and Warranty

Delphi manufactures this fuel pump module assembly to meet standard replacement quality requirements. The product includes all necessary seals and components for a complete installation. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
