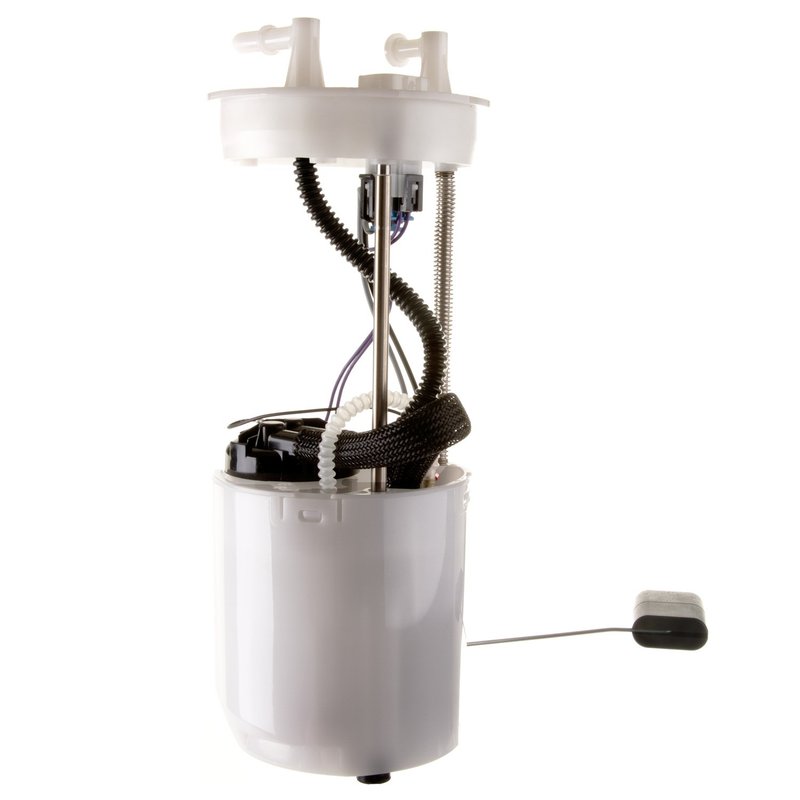

Delphi FG0963 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda CR-V

The Delphi FG0963 fuel pump module assembly is designed specifically for Honda CR-V models requiring a reliable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Honda CR-V fuel systems
• 12.0 Volt electric pump with a maximum pressure of 55 psi
• Includes fuel level sender assembly with float arm
• Equipped with internal strainer and quick connect outlet
• Comes with gasket, lock ring, and blade-type terminals (4 male terminals)

Technical Features and Specifications

The Delphi FG0963 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a 0.375-inch outlet outside diameter with a quick connect outlet type for secure fuel line attachment. The pump delivers an average flow rating of 13 liters per hour and maintains system pressure at 49 psi, with a maximum pressure rating of 55 psi. The module includes an internal strainer at the inlet to prevent debris from entering the fuel system, enhancing durability and performance.

This assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings. The electrical connection uses four male blade terminals, ensuring compatibility with the Honda CR-V's wiring harness. Included in the package are a gasket, lock ring, and installation instructions to facilitate proper installation.

Applications and Problem Resolution

This fuel pump module assembly is compatible with Honda CR-V models requiring a standard replacement fuel pump. It addresses several common fuel system issues, including:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender units
• Fuel pressure drops affecting engine performance and fuel efficiency
• Fuel pump noise or failure from worn internal components
• Leaks or poor sealing from damaged gaskets or lock rings

Installation Notes and Tips

Installation of the Delphi FG0963 fuel pump module assembly should be performed with care to avoid damage to the fuel tank or fuel lines. Ensure the vehicle's battery is disconnected before beginning work. Use the included gasket and lock ring to secure the module and prevent leaks. Verify that the blade terminals are properly connected to the vehicle's wiring harness. It is recommended to inspect the fuel tank for debris and clean as necessary before installation to prolong pump life.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG0963 is a standard replacement grade part designed to restore proper fuel delivery and fuel level sensing in compatible Honda CR-V vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship under normal use.
