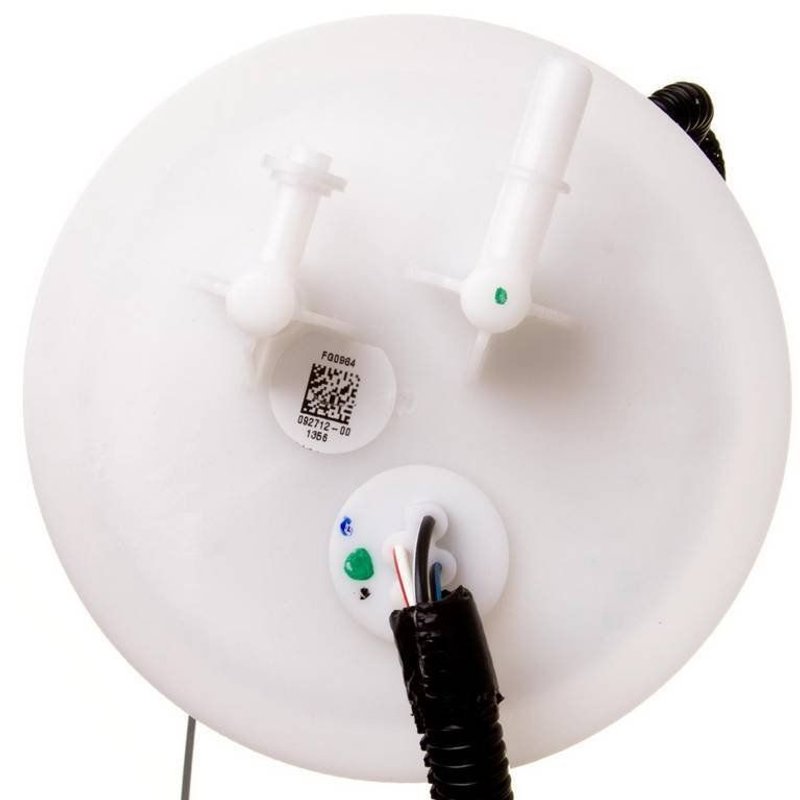

Delphi FG0964 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Lincoln Continental

The Delphi FG0964 fuel pump module assembly is designed specifically for Lincoln Continental models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Internal strainer inlet type for effective fuel filtration
• Quick connect outlet with 0.375 inch outside diameter
• Regulator and gasket/seal included for secure installation
• Seven male pin terminals for reliable electrical connections
• Standard replacement grade with average flow rating of 25
• Designed for gasoline fuel systems with a maximum pressure of 78 psi

Product Details and Specifications

The Delphi FG0964 fuel pump module assembly is an in-tank electric pump designed to maintain a system pressure of 51 psi, suitable for gasoline-powered Lincoln Continental vehicles. It features an internal strainer inlet and includes a strainer to protect the pump from debris. The module comes with a fuel level sender assembly, allowing accurate fuel gauge readings. The outlet is a quick connect type with a 0.375 inch outside diameter, facilitating straightforward fuel line attachment. Electrical connections are made via seven male pin terminals, supporting a stable 12-volt power supply with an average current draw of 14 amps. The included regulator ensures consistent fuel pressure, while the gasket and seal provide a secure, leak-free installation.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Lincoln Continental models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Eliminates electrical connection problems with secure pin terminal design

Installation Notes and Tips

When installing the Delphi FG0964 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Use the included gasket and seal to prevent leaks and verify that the quick connect outlet is securely attached to the fuel line. Confirm all seven male pin terminals are correctly connected to avoid electrical faults. It is recommended to follow the vehicle manufacturer’s service manual for removal and installation procedures to maintain safety and performance standards.

Quality Assurance and Warranty Information

This Delphi fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable operation within the Lincoln Continental fuel system. The product includes a fuel level sender assembly and regulator for comprehensive functionality. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
