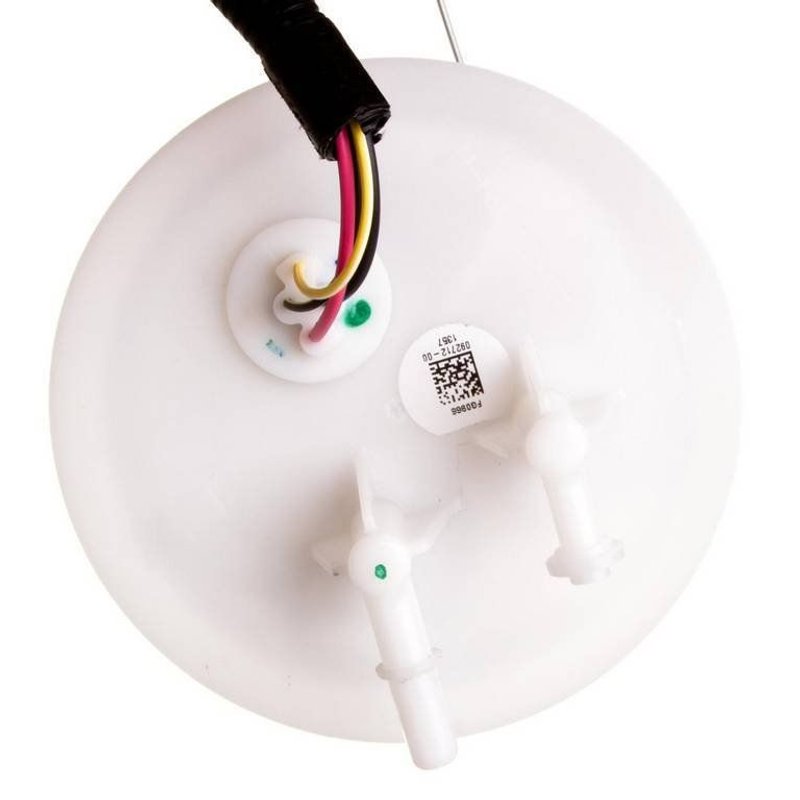

Delphi FG0966 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford and Mercury Vehicles

The Delphi FG0966 fuel pump module assembly is designed specifically for Ford Taurus and Mercury Sable models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• Internal strainer and quick connect outlet for efficient fuel flow
• Standard replacement grade with gasket and seal included
• Designed for 58 psi system pressure and maximum pressure of 78 psi
• Seven-pin male terminal type for secure electrical connection

Technical Details and Features

The Delphi FG0966 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Ford Taurus and Mercury Sable vehicles. It features a 0.375-inch outlet outside diameter with a quick connect outlet type, facilitating straightforward installation and reliable fuel delivery. The pump includes an internal strainer to prevent debris from entering the fuel system, enhancing longevity and performance. The assembly comes with a fuel level sender assembly, providing accurate fuel level readings to the vehicle’s gauge. Electrical connections are made via seven male pin terminals, ensuring a secure and stable connection. The unit is designed to maintain a system pressure of 58 psi, with a maximum pressure rating of 78 psi, supporting consistent engine operation under various conditions.

Common Applications and Problem Resolution

• Replacement for failing or noisy fuel pumps in Ford Taurus and Mercury Sable
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assembly
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection issues with secure seven-pin terminals

Installation Notes and Tips

Installation of the Delphi FG0966 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket and seal included in the package are properly seated to prevent fuel leaks. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure before reassembly. Handle the float arm carefully to avoid damage to the fuel level sender assembly. It is recommended to follow vehicle-specific service manuals for torque specifications and safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump module assembly with quality components designed to meet OEM specifications. The FG0966 part number is manufactured to deliver reliable performance and durability. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer documentation.
