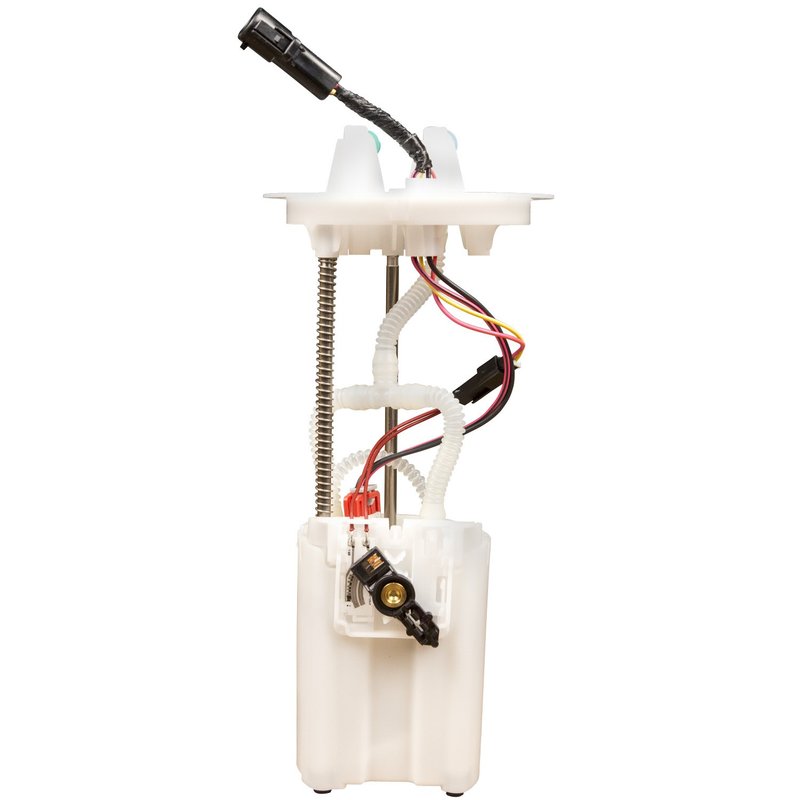

Delphi FG0967 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Escape and Mazda Tribute

The Delphi FG0967 fuel pump module assembly is designed for in-tank installation, providing consistent fuel delivery for select Ford, Mazda, and Mercury models. Engineered to meet standard replacement specifications, this electric fuel pump module supports gas fuel systems with precise flow and pressure control.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ford Escape, Mazda Tribute, and Mercury Mariner models
• 12-volt operation with an average current draw of 14 amps
• Maximum system pressure of 78 psi and average flow rating of 19 gallons per hour
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375-inch outside diameter and dual outlet ports
• Four male pin terminals for reliable electrical connections

Technical Details and Specifications

The Delphi FG0967 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet type with two outlet ports, each measuring 0.375 inches in outside diameter. The module includes a fuel level sender assembly with resistance values ranging from 180 ohms when empty to 10 ohms when full, ensuring accurate fuel gauge readings. The pump maintains a system pressure of 73 psi and a maximum pressure rating of 78 psi, supporting efficient fuel delivery under various driving conditions. The assembly comes with a gasket or seal and an internal strainer to protect the fuel system from contaminants. The four-pin male terminals provide secure electrical connections, and the module is designed for in-tank installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Escape
• Mazda Tribute
• Mercury Mariner

It is intended for use in gasoline-powered models requiring a standard replacement fuel pump module assembly. The Delphi FG0967 is suitable for owners seeking a reliable replacement part that matches OEM specifications.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or irregular operation
• Loss of engine power or stalling under load
• Fuel system contamination causing pump or filter clogging

Installation Notes and Tips

Installation of the Delphi FG0967 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure the gasket or seal included is properly seated to prevent fuel leaks. Verify electrical connections to the four-pin male terminals are secure and free of corrosion. Use caution when handling the internal strainer to avoid damage. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for performance and durability. The FG0967 is a standard replacement grade part designed for reliable operation. While specific warranty terms may vary, Delphi products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or supplier information for detailed warranty coverage.
