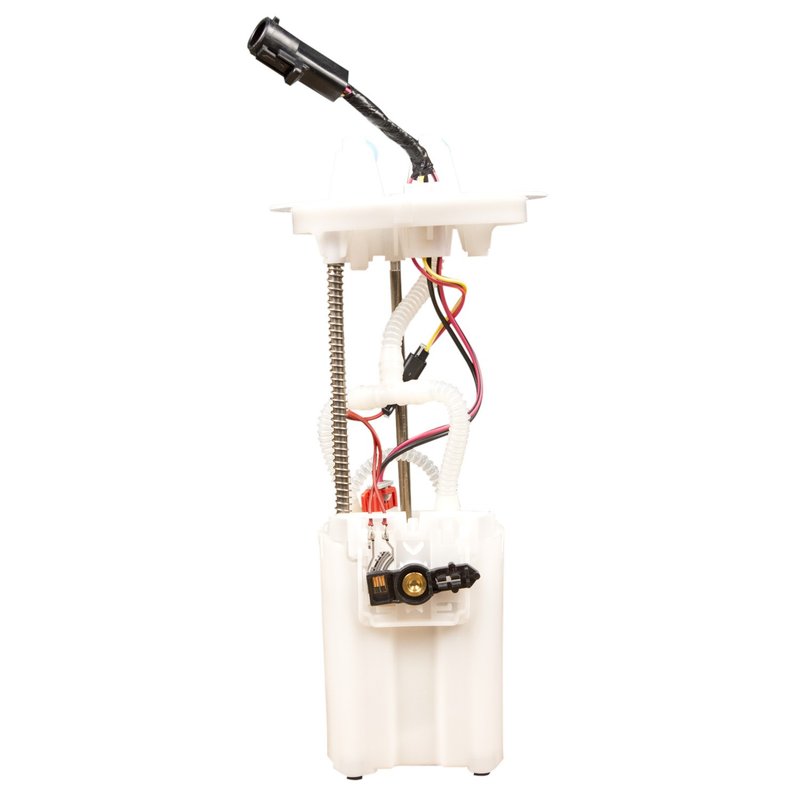

Delphi FG0968 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Escape and Mercury Mariner

The Delphi FG0968 fuel pump module assembly is designed to provide consistent fuel delivery for your Ford Escape or Mercury Mariner. Engineered as a direct replacement, this in-tank electric fuel pump ensures optimal performance and compatibility with your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Four male pin terminals for reliable electrical connection
• Standard replacement grade with average flow rating of 19 liters per hour
• System pressure rated at 73 psi with maximum pressure of 78 psi

Technical Specifications and Features

The Delphi FG0968 fuel pump module assembly is designed for in-tank installation, featuring an internal strainer to protect the fuel system from contaminants. It operates on a 12-volt electrical system and is compatible with gasoline fuel types. The module includes a fuel level sender assembly with resistance values ranging from 180 ohms (empty) to 10 ohms (full), providing accurate fuel level readings. The pump delivers an average flow rate of 19 liters per hour and maintains system pressure at 73 psi, with a maximum pressure rating of 78 psi. The outlet is a quick connect type with a 0.375 inch outside diameter, and the assembly includes a gasket or seal to ensure a secure fit. Electrical connections are made via four male pin terminals, supporting stable current draw averaging 14 amps.

Compatible Vehicles and Applications

This fuel pump module assembly is specifically compatible with Ford Escape and Mercury Mariner models. It is designed to meet the exact specifications required for these vehicles, ensuring proper fit and function. The Delphi FG0968 is ideal for replacing faulty or worn fuel pump modules in these models to restore fuel delivery and maintain engine performance.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inaccurate fuel level readings due to faulty sender assembly
• Eliminates fuel pump noise or failure caused by worn internal components
• Prevents low fuel pressure conditions affecting engine performance
• Replaces damaged or leaking fuel pump modules to maintain system integrity

Installation Notes and Tips

Installation of the Delphi FG0968 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the vehicle's battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket or seal to prevent fuel leaks and verify all electrical connections are secure with the four male pin terminals. The quick connect outlet facilitates straightforward fuel line attachment. Follow the vehicle manufacturer's service manual for detailed removal and installation procedures to ensure proper fitment and operation.

Quality Assurance and Warranty

Delphi manufactures the FG0968 fuel pump module assembly to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a fuel level sender assembly and internal strainer to protect the fuel system. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects. Refer to the product documentation or Delphi's official resources for warranty terms applicable to this fuel pump module assembly.
