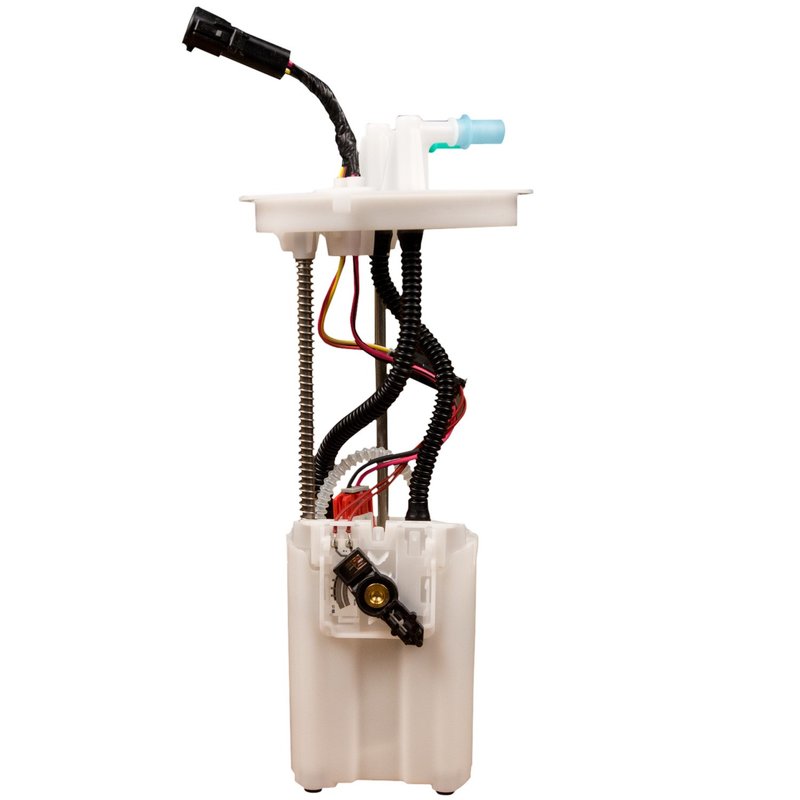

Delphi FG0969 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Escape and Mazda Tribute

The Delphi FG0969 fuel pump module assembly is designed to provide consistent fuel delivery for your Ford Escape or Mazda Tribute. This in-tank electric fuel pump ensures optimal performance and fuel efficiency with precise engineering and quality components.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Four male pin terminals for reliable electrical connection
• Standard replacement grade with average flow rating of 21 liters per hour
• System pressure rated at 65 psi with maximum pressure of 68 psi

Technical Details and Features

The Delphi FG0969 fuel pump module assembly is engineered for in-tank installation, featuring an internal strainer to protect the pump from contaminants. It operates on a 12-volt electrical system and is designed specifically for gasoline fuel. The module includes a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel level readings. The pump’s quick connect outlet type with two outlets and a 0.375 inch outside diameter ensures compatibility with factory fuel lines. Four male pin terminals provide secure electrical connections, supporting an average current draw of 14 amps. This module does not include a regulator or lock ring but comes with a gasket and strainer to facilitate proper sealing and filtration.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with select Ford Escape and Mazda Tribute models. It is designed to replace the original equipment fuel pump module, restoring proper fuel delivery and fuel level sensing functions. The Delphi FG0969 is suitable for addressing issues such as:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel gauge readings
• Engine stalling or hesitation due to fuel starvation
• Fuel pump noise or irregular operation
• Reduced fuel system pressure affecting engine performance

Installation Notes and Tips

Installation of the Delphi FG0969 fuel pump module assembly requires removal of the fuel tank and careful handling to avoid damage to the internal strainer and fuel level sender. Ensure all electrical connections use the four-pin male terminals correctly and verify the gasket is properly seated to prevent leaks. The quick connect outlets should be securely attached to the fuel lines to maintain system pressure. It is recommended to follow vehicle-specific service manuals for safe and accurate installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The FG0969 is a standard replacement grade part backed by Delphi’s quality standards. While specific warranty details may vary, Delphi products typically include coverage against manufacturing defects to ensure customer confidence in the product’s longevity and function.
