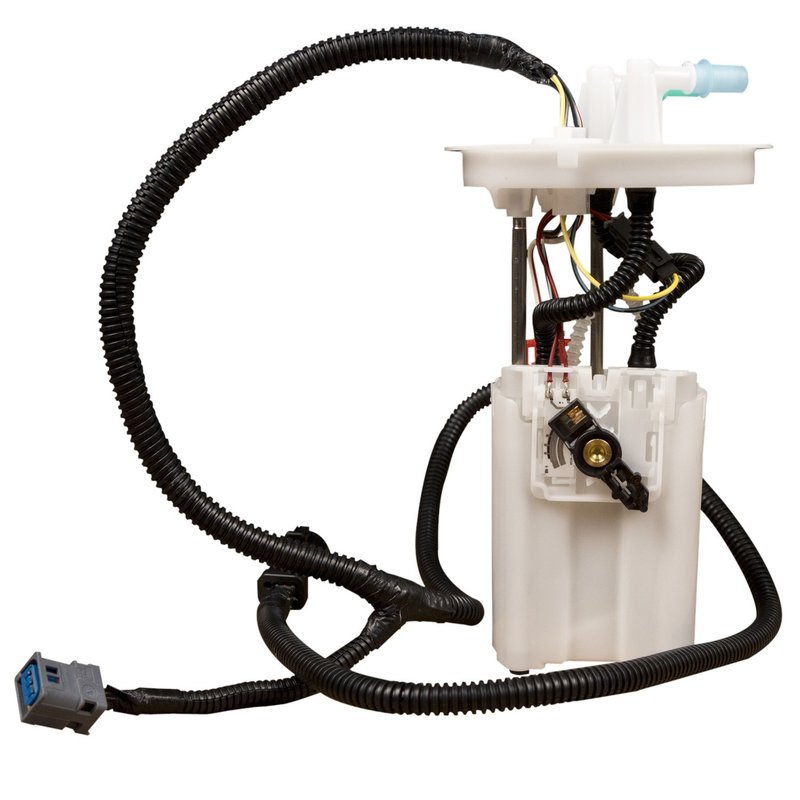

Delphi FG0970 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0970 fuel pump module assembly is designed specifically for Ford Windstar vehicles, providing reliable in-tank fuel delivery for gasoline engines. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ford Windstar models requiring a 13.0-volt, in-tank fuel pump
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Operates at a system pressure of 45 psi with a maximum pressure rating of 65 psi
• Seven male pin terminals for electrical connection
• Standard replacement grade with an average flow rating of 20 gallons per hour

Technical Details and Specifications

The Delphi FG0970 fuel pump module assembly is engineered for gasoline fuel systems in Ford Windstar vehicles. It features an internal strainer inlet type and a quick connect outlet type with two outlet ports, ensuring efficient fuel delivery. The pump operates at 13.0 volts and maintains a system pressure of 45 psi, with a maximum pressure capacity of 65 psi. The module includes a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a leak-free installation, and the terminal configuration includes seven male pin terminals for secure electrical connections.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Windstar gasoline engines
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions caused by clogged or damaged strainers
• Prevents fuel leaks with included gasket for proper sealing

Installation Notes and Tips

When installing the Delphi FG0970 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. Verify compatibility with your specific Ford Windstar model year before installation. Use the included gasket to create a secure seal and prevent leaks. Connect the seven-pin male terminals carefully to avoid electrical issues. It is recommended to inspect the fuel tank and lines for debris or damage during installation to maintain optimal fuel system performance.

Quality Assurance and Warranty Information

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford Windstar vehicles. It undergoes rigorous quality control to ensure durability and reliable operation. The product includes a fuel level sender assembly and internal strainer to maintain system integrity. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring confidence in your purchase.
