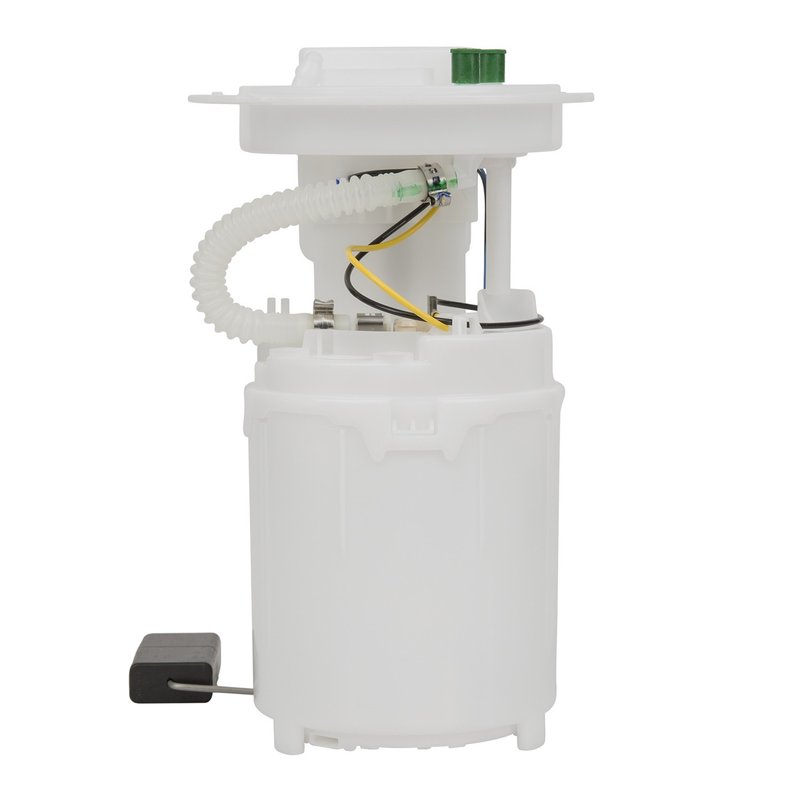

Delphi FG0973 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volkswagen Eos and Jetta

The Delphi FG0973 fuel pump module assembly is designed to provide consistent fuel delivery for Volkswagen Eos and Jetta models. Engineered for gas-powered vehicles, this in-tank electric fuel pump ensures efficient operation and precise fuel level monitoring.

Key Features of Delphi FG0973 Fuel Pump Module

• 12.0 Volt electric fuel pump with an average current draw of 8 amps
• In-tank design with internal strainer and included external strainer for fuel filtration
• Fuel level sender assembly with float arm included for accurate fuel measurement
• Quick connect outlet type with 0.375 inch outside diameter and two outlet ports
• Five male pin terminals for secure electrical connections
• Maximum pressure rating of 80 psi and system pressure of 62 psi
• Includes gasket or seal for proper installation and leak prevention
• Standard replacement grade suitable for Volkswagen Eos and Jetta fuel systems

Detailed Description of the Delphi FG0973 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0973) is specifically designed for Volkswagen Eos and Jetta models running on gasoline. The electric pump operates at 12 volts and delivers an average flow rating of 23 liters per hour, supporting optimal engine performance. The module features an internal strainer and includes an additional strainer to protect the fuel system from contaminants. The fuel level sender assembly with float arm provides reliable fuel level readings, helping maintain accurate dashboard gauge information.

The module’s quick connect outlet with a 0.375 inch outside diameter and dual outlet ports facilitates straightforward installation and secure fuel line connections. With five male pin terminals, the electrical interface ensures stable power delivery. The included gasket or seal helps maintain a tight fit within the fuel tank, preventing leaks and maintaining system integrity.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Volkswagen Eos and Jetta
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination issues with integrated strainer components
• Restores proper electrical connections with secure pin terminals

Installation Notes and Tips

• Ensure vehicle compatibility with Volkswagen Eos or Jetta models before installation
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Replace the gasket or seal during installation to prevent fuel leaks
• Verify all electrical connections are secure and free of corrosion
• Follow manufacturer instructions included with the module for proper installation procedures

Quality Assurance and Warranty Information

The Delphi FG0973 fuel pump module assembly is manufactured to meet standard replacement quality requirements. It undergoes rigorous testing to ensure reliable performance and durability in Volkswagen fuel systems. This part includes a gasket and instruction sheet to support proper installation. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
