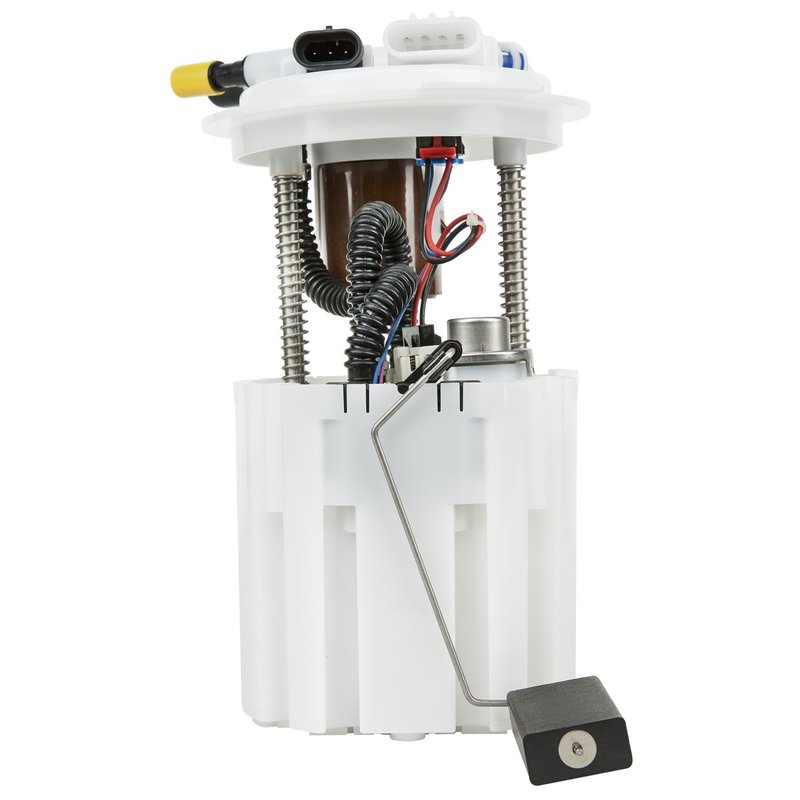

Delphi FG0974 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet HHR

The Delphi FG0974 fuel pump module assembly is designed specifically for Chevrolet HHR models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and system pressure for gasoline engines.

• 12.0 Volt electric fuel pump with integrated regulator
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 59 psi and system pressure of 58 psi
• Internal strainer and quick connect outlet for efficient fuel flow
• Compatible with Chevrolet HHR fuel systems requiring a 0.375 inch outlet diameter
• Blade-type male terminals with four connections for secure wiring
• Includes gasket and seal for proper installation
• Vapor pressure sensor integrated for emissions control

Detailed Product Description

The Delphi FG0974 fuel pump module assembly is engineered as a standard replacement part for Chevrolet HHR vehicles running on gasoline. This electric pump module operates at 12 volts and features an internal strainer to prevent debris from entering the fuel system. The assembly includes a fuel level sender with a float arm, providing accurate fuel gauge readings. Its quick connect outlet type and 0.375 inch outlet diameter ensure compatibility with the vehicle's fuel lines. The module maintains a maximum pressure of 59 psi and a system pressure of 58 psi, supporting consistent fuel delivery under various driving conditions. The four blade-type male terminals facilitate reliable electrical connections, while the included gasket and seal help maintain a secure, leak-free installation. Additionally, the vapor pressure sensor supports emissions system functionality.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet HHR
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel delivery interruptions from clogged or damaged internal strainers
• Supports emissions compliance with integrated vapor pressure sensor

Installation Notes and Tips

• Designed as an in-tank replacement; ensure proper fuel tank access before installation
• Verify electrical connections match the four blade-type male terminals
• Use the included gasket and seal to prevent fuel leaks
• Handle the float arm carefully to avoid damage during installation
• Confirm outlet connections are compatible with 0.375 inch quick connect fittings

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for Chevrolet HHR vehicles. The FG0974 part undergoes rigorous testing to ensure durability and reliable performance. This standard replacement grade component includes a fuel level sender and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
