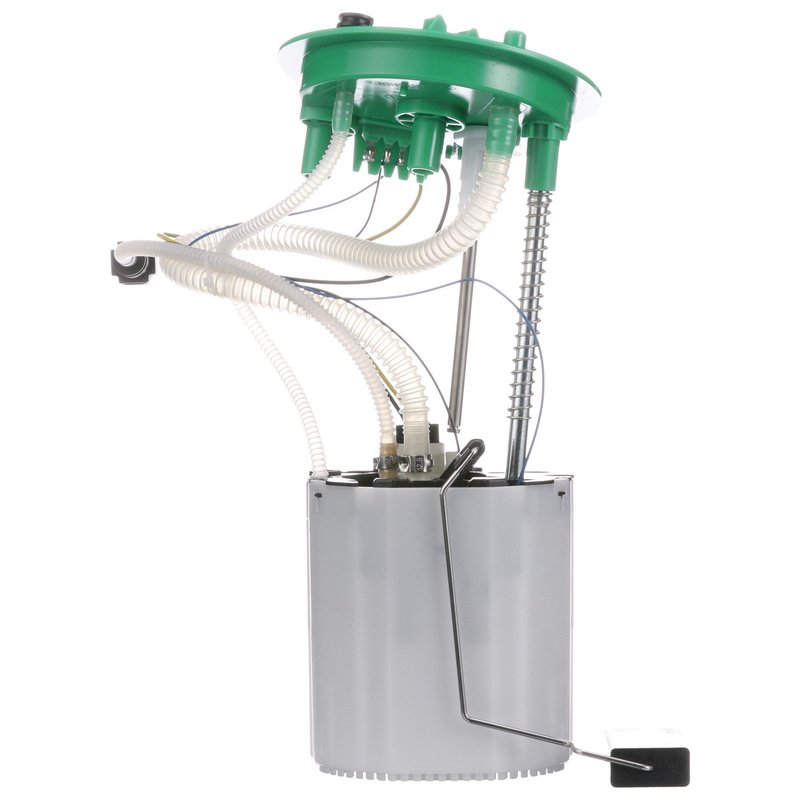

Delphi FG0977 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Audi A4 Quattro and RS4

The Delphi FG0977 fuel pump module assembly is designed specifically for Audi A4 Quattro and RS4 models. This in-tank electric fuel pump ensures consistent fuel delivery and optimal engine performance for gasoline-powered vehicles.

• 12.0 Volt electric fuel pump with an average current draw of 9 amps
• Maximum pressure rating of 109 psi and system pressure of 87 psi
• Includes internal strainer and fuel level sender assembly with float arm
• Outlet outside diameter of 0.375 inches with three quick connect outlets
• Four male pin terminals for secure electrical connections
• Comes with gasket/seal and instruction sheet for installation

Technical Details and Features

The Delphi FG0977 fuel pump module assembly is engineered for gasoline fuel systems in Audi A4 Quattro and RS4 vehicles. It features an internal strainer inlet type and quick connect outlet type with three outlets to ensure efficient fuel flow. The pump operates at 12 volts with a resistance range from 46 ohms (full) to 300 ohms (empty), providing reliable fuel level readings. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel gauge operation. The four male pin terminals facilitate a secure electrical connection, while the included gasket ensures a proper seal within the fuel tank. This standard replacement grade pump supports an average flow rating of 45 liters per hour, maintaining consistent fuel delivery under normal operating conditions.

Compatible Vehicles and Applications

• Designed for Audi A4 Quattro models requiring a fuel pump module assembly
• Compatible with Audi RS4 fuel systems using gasoline fuel
• Ideal for replacing faulty or worn fuel pump modules in these specific models
• Addresses issues such as low fuel pressure, inconsistent fuel delivery, and inaccurate fuel level readings

Installation Notes and Tips

Installation of the Delphi FG0977 fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on the vehicle model. Ensure the gasket is properly seated to prevent fuel leaks. Verify electrical connections to the four male pin terminals are secure and free of corrosion. Follow the included instruction sheet carefully to maintain system integrity and safety. It is recommended to relieve fuel system pressure before beginning installation to avoid fuel spray or injury.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG0977 part undergoes rigorous testing to ensure durability and reliable performance in Audi A4 Quattro and RS4 vehicles. This standard replacement grade fuel pump module assembly includes a gasket and fuel level sender assembly for comprehensive system restoration. Warranty coverage details should be confirmed with the parts provider or manufacturer documentation.
