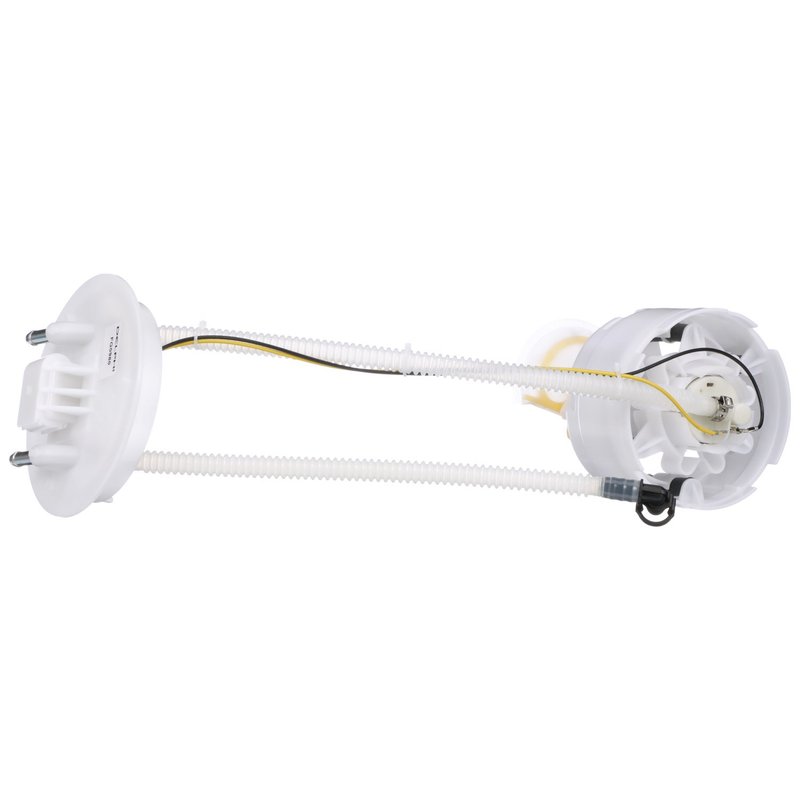

Delphi FG0980 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0980 fuel pump module assembly is designed for reliable fuel delivery in select Audi models. Engineered as an in-tank electric fuel pump, it supports gas fuel systems and is compatible with Audi A6 Quattro, Allroad Quattro, and S6 vehicles.

• 12.0 Volt electric fuel pump module
• In-tank installation with external strainer
• Maximum pressure rating of 80 psi and system pressure of 51 psi
• Includes gasket and strainer; excludes regulator and lock ring
• Four male pin terminals with hose-type outlets (two outlets, 0.375 inch diameter)
• Average flow rating of 45 and average current draw of 8 amps

Technical Details and Specifications

The Delphi FG0980 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an in-tank electric pump with an external strainer inlet type, ensuring effective filtration before fuel reaches the pump. The module includes a gasket and strainer for proper sealing and filtration but does not include a fuel pressure regulator or lock ring. The outlet connections are hose type with an outside diameter of 0.375 inches, and there are two outlets to support fuel delivery. The pump uses four male pin terminals for electrical connection, providing a secure and reliable interface.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Audi models:

• Audi A6 Quattro
• Audi Allroad Quattro
• Audi S6

It is designed as a standard replacement part to maintain proper fuel pressure and flow within these vehicles' fuel systems.

Common Issues Addressed by Delphi FG0980

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure affecting engine performance
• Fuel pump failure due to clogged or damaged strainers
• Electrical connection problems with worn or damaged terminals
• Leaks or improper sealing from worn gaskets or seals

Installation Notes and Tips

• Ensure vehicle compatibility with Audi A6 Quattro, Allroad Quattro, or S6 before installation
• Handle the fuel pump module carefully to avoid damage to the strainer and terminals
• Replace the gasket included in the package to ensure a proper seal
• Verify electrical connections match the four male pin terminals on the module
• Follow manufacturer instructions for safe removal and installation of the in-tank fuel pump

Quality Assurance and Warranty

The Delphi FG0980 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It is a standard replacement grade part designed to restore proper fuel delivery in compatible Audi models. The product includes a gasket and strainer to support reliable operation. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
