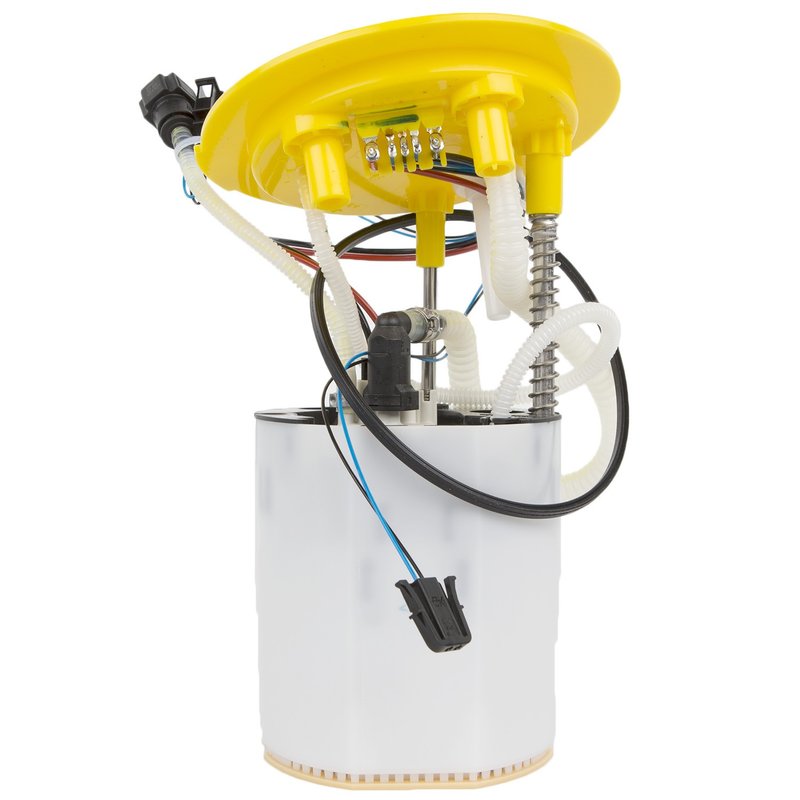

Delphi FG0982 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Audi A6 and S6 Models

The Delphi FG0982 fuel pump module assembly is designed specifically for Audi A6, A6 Quattro, and S6 vehicles. This electric in-tank fuel pump ensures consistent fuel delivery and optimal engine performance for gasoline-powered engines.

• Electric fuel pump module assembly with part number FG0982
• Compatible with Audi A6, A6 Quattro, and S6 models
• Operates at 12.0 volts with a maximum pressure of 80 psi
• Includes internal strainer and quick connect outlet type
• Features 5 male pin terminals and 3 outlet connections
• Designed for gasoline fuel systems with an average flow rating of 35
• Standard replacement grade without regulator or gasket included

Technical Specifications and Features

The Delphi FG0982 fuel pump module assembly is engineered for in-tank installation, providing efficient fuel delivery with an average current draw of 10 amps. It features a 0.375-inch outlet outside diameter and supports a system pressure of 58 psi. The pump includes an internal strainer to protect the fuel system from contaminants and uses a quick connect outlet type for secure and easy installation. With five male pin terminals, this module ensures reliable electrical connections. Note that this assembly does not include a fuel level sender or regulator, focusing solely on fuel delivery performance.

Applications and Problem Solving

This fuel pump module assembly is compatible with Audi A6, A6 Quattro, and S6 models, making it a suitable replacement for addressing common fuel system issues such as:

• Intermittent or complete fuel delivery failure
• Engine stalling or hesitation during acceleration
• Low fuel pressure affecting engine performance
• Fuel pump noise or irregular operation
• Contaminant-related fuel system blockages

Installation Notes and Tips

When installing the Delphi FG0982 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. This module is designed for in-tank installation and requires careful handling of the internal strainer and quick connect outlets. Verify electrical connections match the five male pin terminals and confirm compatibility with the vehicle’s fuel lines. Since the assembly does not include a gasket or lock ring, reuse existing components or source replacements as needed. Follow the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty

Delphi manufactures the FG0982 fuel pump module assembly to meet standard replacement grade specifications, ensuring reliable performance and durability. While this product does not include a regulator or fuel level sender, it is built to maintain consistent fuel pressure and flow within specified parameters. Delphi provides a limited warranty covering defects in materials and workmanship, supporting confidence in the product’s quality for Audi A6 and S6 fuel system repairs.
