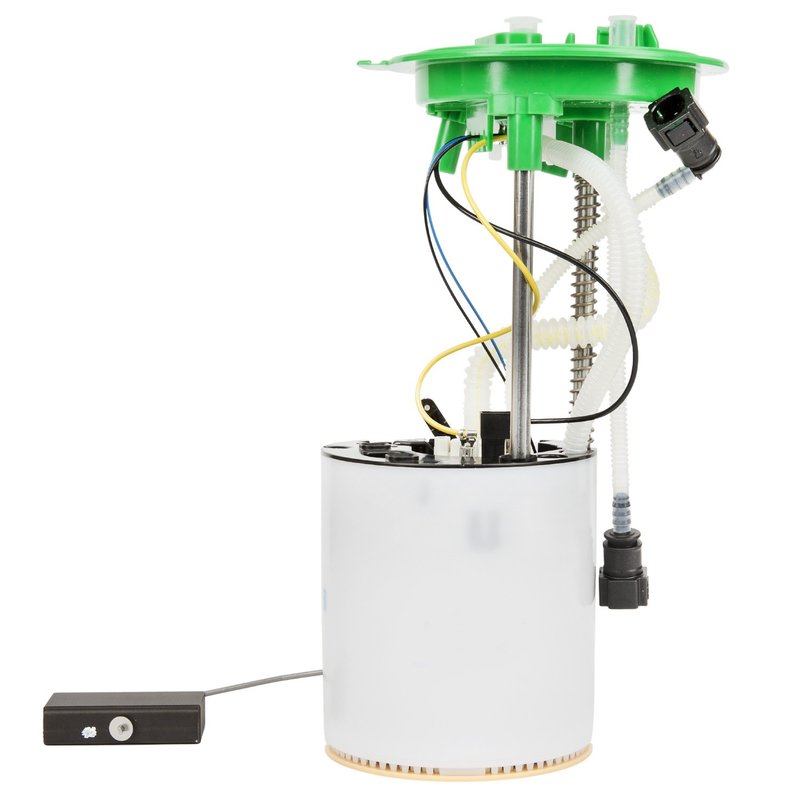

Delphi FG0983 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Audi A4

The Delphi FG0983 fuel pump module assembly is designed specifically for Audi A4 models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• In-tank design with internal strainer for fuel filtration
• Fuel level sender assembly included for accurate fuel gauge readings
• Quick connect outlet type with 0.375 inch outside diameter
• Maximum pressure rating of 87 psi and system pressure of 73 psi
• Four male pin terminals for secure electrical connections
• Includes gasket or seal and fuel feed line for proper sealing
• Average flow rating of 37 liters per hour and average current draw of 15 amps

Detailed Product Description

The Delphi FG0983 fuel pump module assembly is a standard replacement part designed for the Audi A4. It features an electric pump type that operates at 12 volts, providing a steady fuel supply with a maximum pressure of 87 psi and a system pressure of 73 psi. The module includes an internal strainer inlet and a quick connect outlet with three outlets, each measuring 0.375 inches in diameter, ensuring efficient fuel delivery and filtration. The assembly also incorporates a fuel level sender assembly with resistance values of 305 ohms when empty and 55 ohms when full, enabling precise fuel level monitoring. Four male pin terminals facilitate reliable electrical connections, while the included gasket or seal helps maintain a secure fit within the fuel tank. This module is designed for in-tank installation, making it compatible with the fuel system of the Audi A4.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Audi A4 vehicles
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel delivery interruptions caused by clogged strainers
• Restores proper electrical connections with pin terminal design

Installation Notes and Tips

When installing the Delphi FG0983 fuel pump module assembly, ensure the gasket or seal is properly seated to prevent fuel leaks. Verify the four male pin terminals align correctly with the vehicle’s wiring harness. The quick connect outlet facilitates straightforward fuel line attachment, but confirm all connections are secure before operation. This module is designed for in-tank installation, so take appropriate safety precautions when accessing the fuel tank.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit and function. The FG0983 is a standard replacement grade part, ensuring reliable performance for Audi A4 fuel delivery systems. While specific warranty details are not provided, Delphi products typically come with manufacturer-backed quality assurance to support durability and operational consistency.
