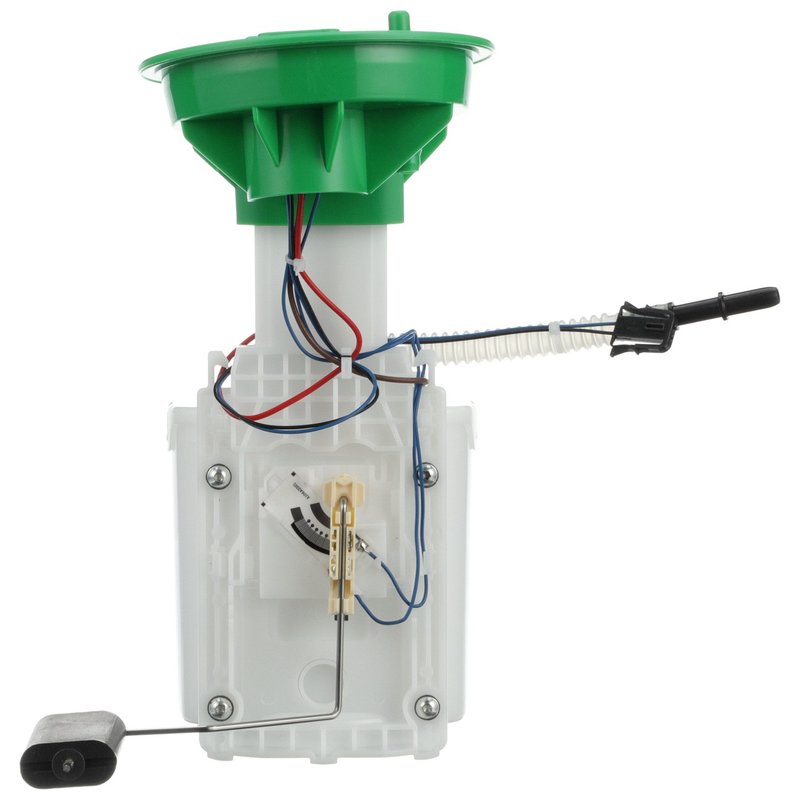

Delphi FG0985 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Mini Cooper

The Delphi FG0985 fuel pump module assembly is designed specifically for Mini Cooper vehicles, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with a 12-volt operation and a maximum pressure rating of 80 psi.

• Compatible with Mini Cooper models
• Electric in-tank fuel pump with 12.0 volts
• Includes fuel level sender assembly with float arm
• External strainer inlet type with quick connect outlet
• Maximum system pressure of 44 psi and flow rating of 33
• Comes with gasket/seal and instruction sheet
• 6-pin male terminal type for secure electrical connection

Technical Details and Features

The Delphi FG0985 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with a 0.313-inch outside diameter, ensuring efficient fuel flow. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings with resistance values ranging from 20 ohms (empty) to 300 ohms (full). The pump delivers an average flow rating of 33 and maintains a system pressure of 44 psi, with a maximum pressure capacity of 80 psi. The assembly includes a gasket or seal for proper installation and a 6-pin male terminal for electrical connections. The pump type is electric, and the module is designed as a standard replacement part for Mini Cooper vehicles.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Mini Cooper vehicles
• Resolves inconsistent fuel delivery or engine stalling issues
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel pressure drops affecting engine performance
• Eliminates fuel pump noise or failure caused by clogged strainers

Installation Notes and Tips

Installation of the Delphi FG0985 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket or seal included is properly seated to prevent fuel leaks. The 6-pin male terminal should be connected securely to the vehicle’s wiring harness. Use the provided instruction sheet for detailed installation guidance. It is recommended to inspect the fuel tank and lines for debris or damage during installation to maintain optimal fuel system performance.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for Mini Cooper vehicles. This standard replacement part undergoes rigorous testing to ensure durability and reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
