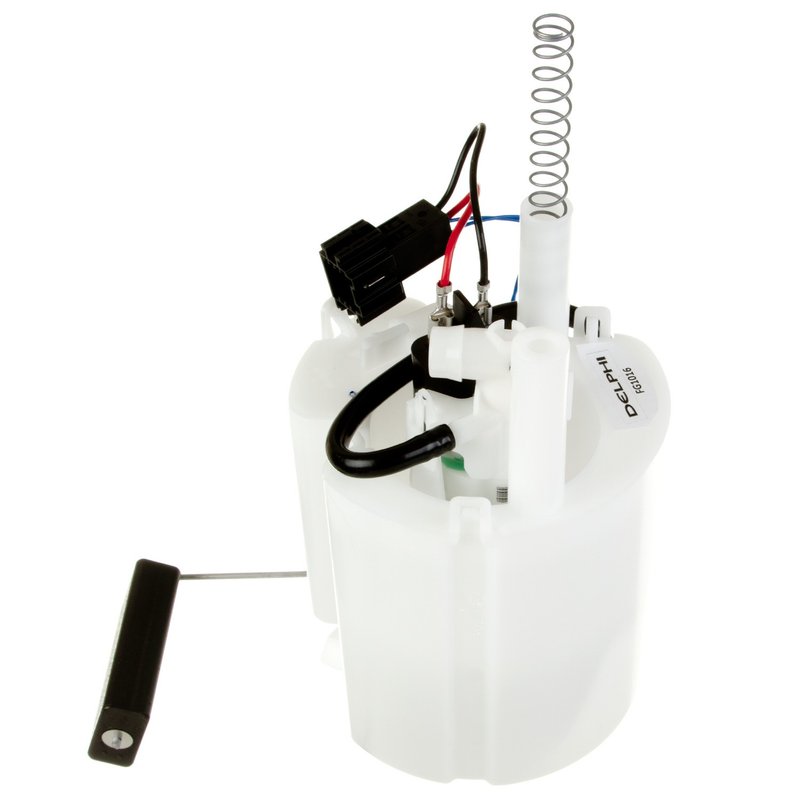

Delphi FG1016 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1016 fuel pump module assembly is designed for reliable fuel delivery in select Mercedes-Benz models. This in-tank electric fuel pump module supports gas fuel systems and includes a fuel level sender assembly for accurate fuel measurement.

• Compatible with Mercedes-Benz C230, C240, C280, C320, and CLK320 models
• 12.0-volt electric pump with an average flow rating of 30 liters per hour
• Internal strainer inlet and hose-type outlet with 0.625-inch outside diameter
• Includes fuel level sender assembly with float arm for precise fuel level readings
• Blade-type male terminals with four connections for secure electrical interface
• Designed for a system pressure of 58 psi and maximum pressure of 80 psi
• Standard replacement grade with internal strainer included, no regulator or gasket included

Technical Details and Specifications

The Delphi FG1016 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an internal strainer inlet to prevent debris from entering the pump, ensuring consistent fuel flow. The outlet is a hose type with a 0.625-inch outside diameter, suitable for the fuel lines in compatible Mercedes-Benz vehicles. The pump draws an average current of 8 amps and maintains a system pressure of 58 psi, with a maximum pressure rating of 80 psi. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level data to the vehicle’s dashboard. Electrical connections are made via four blade-type male terminals, designed for secure and reliable contact.

Compatible Vehicles and Applications

This fuel pump module assembly is specifically compatible with the following Mercedes-Benz models: C230, C240, C280, C320, and CLK320. It is intended as a direct replacement for the original equipment fuel pump module in these vehicles, ensuring proper fit and function. The part number FG1016 should be referenced when searching for a replacement fuel pump module for these models.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inaccurate fuel level readings due to faulty sender units
• Replaces worn or damaged in-tank fuel pump modules
• Helps restore proper fuel system pressure and flow
• Eliminates fuel pump noise caused by internal strainer clogging

Installation Notes and Tips

Installation of the Delphi FG1016 fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on the vehicle model. Ensure the fuel system is depressurized before beginning work. Handle the fuel level sender assembly carefully to avoid damage to the float arm. Verify all electrical connections are secure and free of corrosion. It is recommended to replace any associated seals or gaskets during installation, although this module does not include them. Follow manufacturer instructions included with the product for proper installation procedures.

Quality Assurance and Warranty

The Delphi FG1016 fuel pump module assembly is manufactured to meet standard replacement quality requirements. It undergoes rigorous testing to ensure consistent performance and durability in compatible Mercedes-Benz vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
