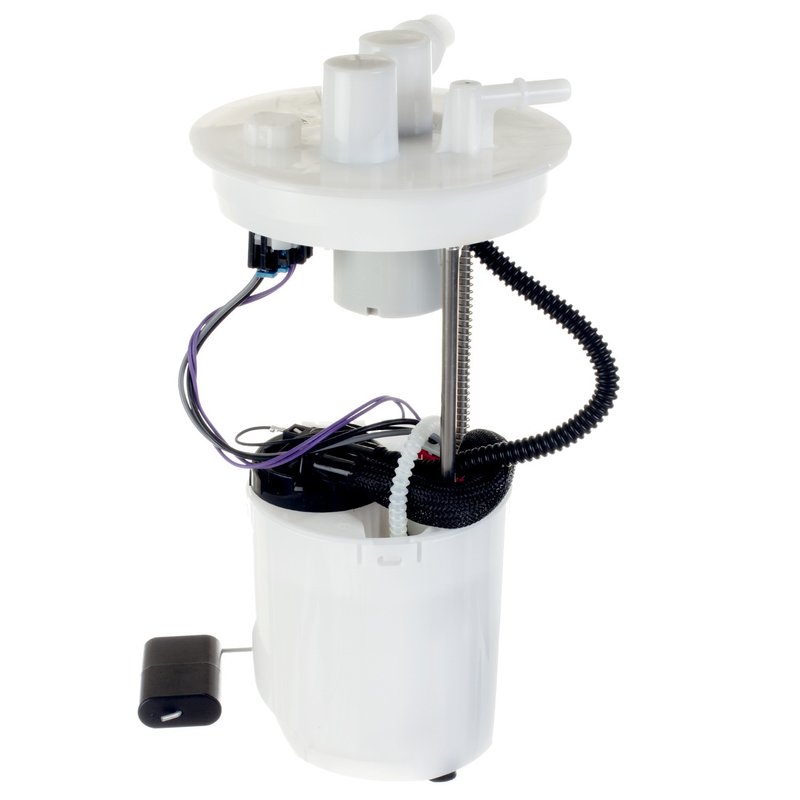

Delphi FG1046 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Honda Civic

The Delphi FG1046 fuel pump module assembly is designed specifically for Honda Civic models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Honda Civic fuel systems
• Electric pump type with 13.0 voltage rating
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 50 psi and system pressure of 46 psi
• Features internal strainer and quick connect outlet type
• Comes with gasket, lock ring, and regulator included
• Blade terminal type with 4 male terminals for secure connections
• Average flow rating of 20 and average current draw of 6 amps

Technical Details and Specifications

The Delphi FG1046 fuel pump module assembly is engineered for gas-powered Honda Civic vehicles, providing a standard replacement part that integrates seamlessly with the factory fuel system. The module includes an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel flow and filtration. The assembly operates at 13 volts and maintains a system pressure of 46 psi, with a maximum pressure capacity of 50 psi. It features a regulator to maintain consistent fuel pressure and a fuel level sender assembly for accurate fuel gauge readings. The pump uses blade-type terminals, with four male terminals included for reliable electrical connections. The package contains the fuel pump module assembly, float arm, seal, lock ring, and installation instructions.

Applications and Common Issues Addressed

• Restores proper fuel delivery in Honda Civic models experiencing fuel starvation
• Replaces faulty or worn fuel pump modules causing engine hesitation or stalling
• Resolves inaccurate fuel level readings due to a malfunctioning sender assembly
• Eliminates fuel pressure drops affecting engine performance and drivability
• Addresses fuel pump noise or failure symptoms in gas-powered Honda Civics

Installation Notes and Tips

Installation of the Delphi FG1046 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included gasket and lock ring should be properly seated to prevent leaks. Verify all electrical connections to the blade terminals are secure and free of corrosion. Follow the provided instructions carefully to maintain system integrity and safety. It is recommended to inspect the fuel strainer and replace it if clogged or damaged during installation.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1046 is a standard replacement grade part designed to provide reliable operation within specified parameters. This product includes a regulator and fuel level sender assembly to ensure comprehensive system compatibility. Warranty coverage details should be confirmed at the point of purchase, typically offering protection against defects in materials and workmanship.
