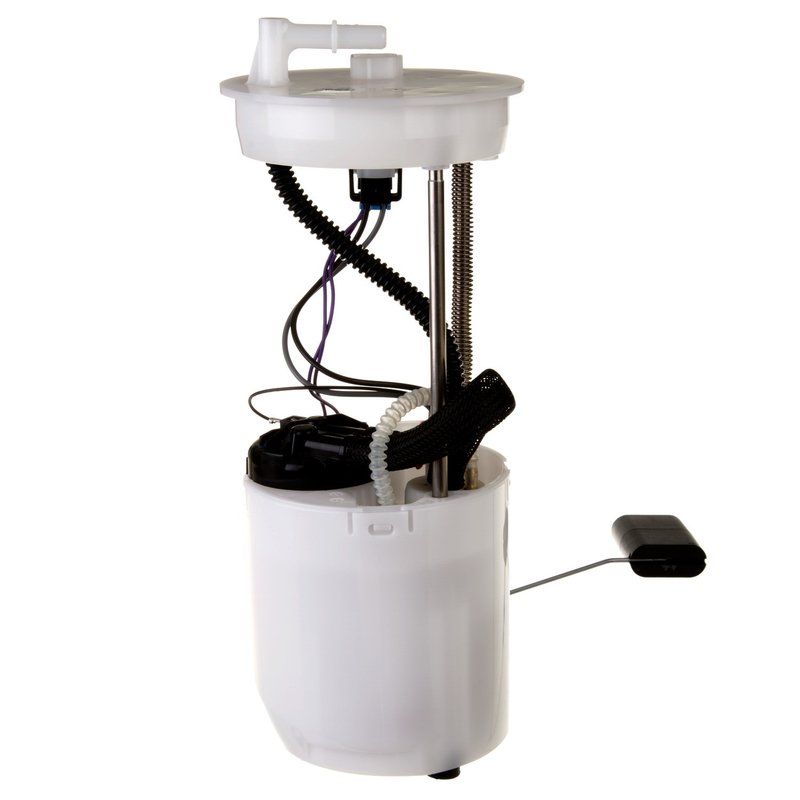

Delphi FG1047 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda CR-V

The Delphi FG1047 fuel pump module assembly is designed specifically for Honda CR-V models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

• Compatible with Honda CR-V fuel systems
• 12.0 Volt electric pump with integrated fuel level sender assembly
• Includes regulator, gasket, lock ring, and internal strainer
• Maximum pressure rating of 78 psi and system pressure of 49 psi
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type terminals, 4 male terminals for secure electrical connection
• Standard replacement grade for dependable operation

Technical Details and Features

The Delphi FG1047 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating easy installation and maintenance. The module includes a fuel level sender assembly with resistance values ranging from 780 ohms (empty) to 20 ohms (full), providing accurate fuel level readings. The pump draws an average current of 14 amps and delivers an average flow rating of 13 gallons per hour, supporting consistent fuel delivery under various driving conditions. The assembly comes complete with a regulator to maintain system pressure at 49 psi, a gasket or seal, and a lock ring to secure the module within the fuel tank.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Honda CR-V vehicles
• Resolves issues with inconsistent fuel pressure or flow
• Corrects inaccurate fuel level readings due to sender assembly failure
• Eliminates fuel delivery interruptions caused by clogged strainers
• Addresses electrical connection problems with blade-type terminals

Installation Notes and Tips

Installation of the Delphi FG1047 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included lock ring and gasket should be properly seated to prevent fuel leaks. Verify electrical connections to the four blade terminals are secure and free of corrosion. The quick connect outlet simplifies fuel line attachment, but confirm a tight fit to avoid leaks. It is recommended to inspect the fuel tank for debris and clean as necessary before installing the new module.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is manufactured to meet or exceed OEM specifications for Honda CR-V vehicles. It is a standard replacement grade part designed for durability and reliable performance. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring confidence in the product's quality and longevity.
