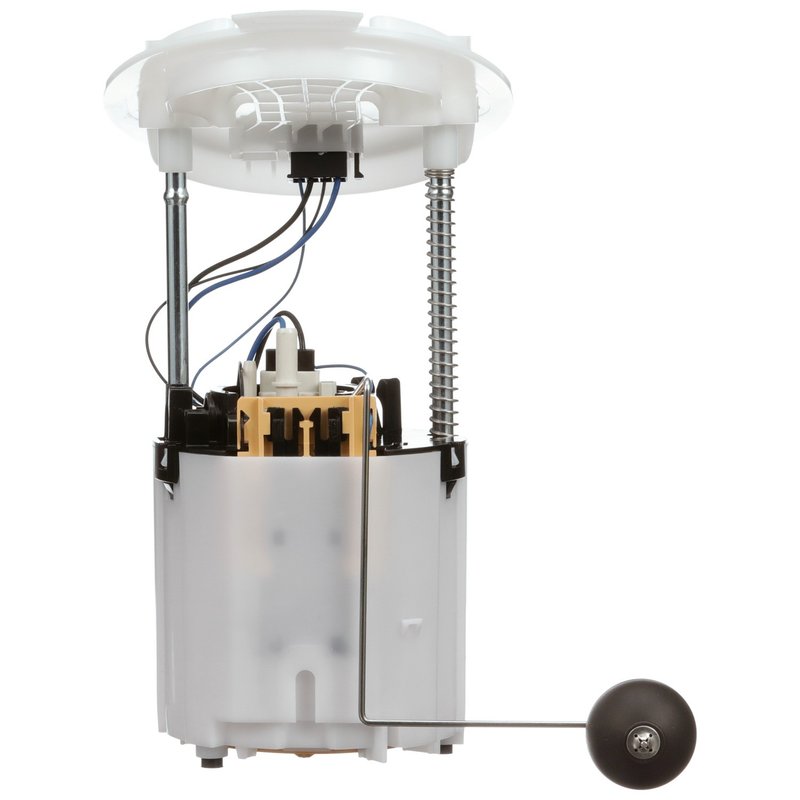

Delphi FG1052 Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Chrysler and Dodge Vehicles

The Delphi FG1052 fuel pump module assembly is designed to provide consistent fuel delivery for select Chrysler and Dodge models, including the 300, Challenger, Charger, and Magnum. This in-tank electric fuel pump ensures efficient operation with a built-in fuel level sender assembly and essential components for a straightforward replacement.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chrysler 300, Dodge Challenger, Charger, and Magnum
• 12-volt operation with a maximum pressure of 80 psi and system pressure of 58 psi
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.313-inch outside diameter
• Blade-type male terminals with 5-terminal quantity for reliable electrical connection
• Standard replacement grade with average flow rating of 24

Product Details and Specifications

The Delphi FG1052 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy installation. The pump’s average current draw is 9 amps, supporting a flow rating of 24, suitable for maintaining optimal engine performance. The assembly includes a fuel level sender assembly with resistance values ranging from 990 ohms (empty) to 51 ohms (full), providing accurate fuel level readings. The unit comes with a gasket or seal to ensure a tight fit within the fuel tank, and the blade-type male terminals with five connections support secure electrical integration. This module is positioned on the left side of the tank and does not include a regulator or lock ring.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chrysler 300
• Dodge Challenger
• Dodge Charger
• Dodge Magnum

It is designed specifically for in-tank installation in gasoline fuel systems, making it a suitable replacement for original equipment in these models.

Common Issues Addressed by the Delphi FG1052

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or irregular operation
• Reduced engine performance caused by insufficient fuel pressure
• Fuel leaks or poor sealing within the fuel tank

Installation Notes and Tips

When installing the Delphi FG1052 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump module, noting the orientation and terminal connections. Replace the gasket or seal included with the new assembly to prevent leaks. Connect the blade-type male terminals securely, and verify the quick connect outlet is properly seated. After installation, check for fuel leaks and confirm the fuel level sender is functioning correctly before starting the engine.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. The FG1052 assembly includes a fuel level sender and strainer to maintain system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
