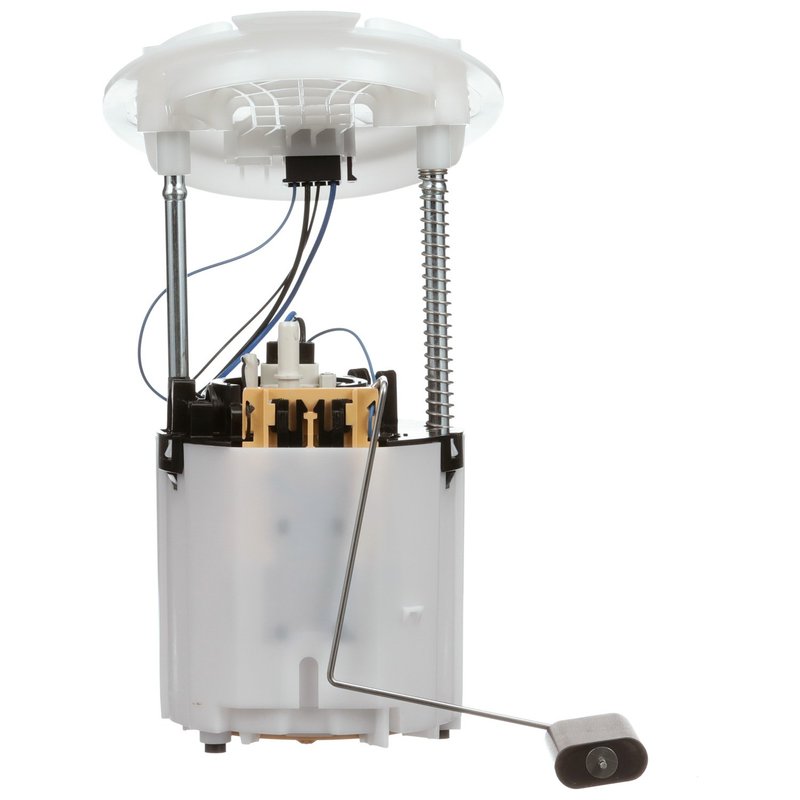

Delphi FG1053 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1053 fuel pump module assembly is designed for reliable fuel delivery in select Chrysler and Dodge vehicles. This in-tank electric fuel pump module is engineered to meet the specific requirements of models like the Chrysler 300, Dodge Challenger, Charger, and Magnum, ensuring consistent performance and compatibility.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chrysler 300, Dodge Challenger, Charger, and Magnum
• 12-volt operation with a maximum pressure of 80 psi and system pressure of 58 psi
• Includes internal strainer and gasket for secure installation
• Blade-type male terminals with 5-terminal quantity for reliable electrical connections
• Quick connect outlet with 0.313-inch outside diameter
• Standard replacement grade with average flow rating of 24

Technical Specifications and Features

The Delphi FG1053 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy installation. The pump delivers an average flow rating of 24 and maintains system pressure at 58 psi, with a maximum pressure rating of 80 psi. The assembly includes a fuel level sender assembly with resistance values ranging from 51 ohms (full) to 990 ohms (empty), providing accurate fuel level readings. The module comes with a gasket or seal to ensure a tight fit and prevent leaks. Electrical connections are made via five blade-type male terminals, supporting stable and secure power delivery. This in-tank pump module is positioned on the left side of the fuel tank and includes an internal strainer to protect the pump from debris.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chrysler 300
• Dodge Challenger
• Dodge Charger
• Dodge Magnum

It is designed specifically for gasoline fuel systems in these models, ensuring proper fitment and function when replacing the original fuel pump module.

Common Issues Addressed by the Delphi FG1053

• Fuel delivery interruptions causing engine stalling or hesitation
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump failure resulting in no-start conditions
• Leaks or poor sealing from worn gaskets or seals
• Electrical connection problems affecting pump operation

Installation Notes and Tips

• Ensure the vehicle is safely supported and the fuel tank is depressurized before removal
• Verify the left-side position of the fuel pump module in the tank for correct installation
• Use the included gasket or seal to prevent fuel leaks
• Check all electrical connections for secure fitment of the five blade terminals
• Follow manufacturer instructions carefully to avoid damage to the fuel system components

Quality Assurance and Warranty

The Delphi FG1053 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications. It includes a fuel level sender assembly and internal strainer to maintain system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
