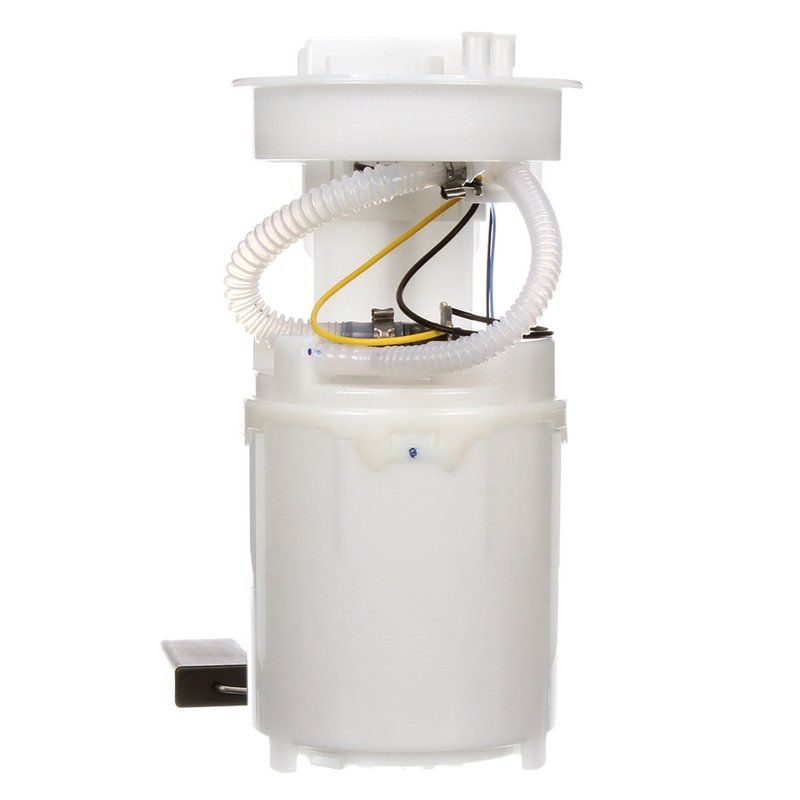

Delphi FG1079 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1079 fuel pump module assembly is designed for reliable fuel delivery in select Audi and Volkswagen vehicles. Engineered as a direct replacement, this electric in-tank fuel pump supports gas fuel systems and ensures consistent performance for models like the Audi TT and Volkswagen Golf.

• Electric fuel pump module assembly with internal strainer
• Compatible with Audi Beetle, Golf, Jetta, and TT models
• Operates at 12 volts with a system pressure of 44 psi
• Features quick connect outlet with 0.3125 inch outside diameter
• Includes four male pin terminals and internal strainer for fuel filtration
• Standard replacement grade without regulator or fuel level sender assembly

Technical Specifications and Features

The Delphi FG1079 fuel pump module assembly operates at 12.0 volts and is designed for gasoline fuel systems. It delivers an average flow rating of 23 liters per hour and maintains a system pressure of 44 psi, with a maximum pressure rating of 87 psi. The pump includes an internal strainer inlet and quick connect outlet with an outside diameter of 0.3125 inches, ensuring secure fuel flow connections. The module features four male pin terminals for electrical connections and draws an average current of 7 amps during operation. This assembly does not include a fuel pressure regulator, gasket, lock ring, or fuel level sender assembly, making it a straightforward replacement part for compatible vehicles.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with various Audi and Volkswagen models, including the Audi Beetle, Golf, Jetta, and TT. It is specifically designed for in-tank installation in gasoline-powered vehicles requiring a standard replacement fuel pump module. The Delphi FG1079 is suitable for owners seeking a reliable replacement part that meets OEM specifications for these models.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure or pump failure symptoms
• Replaces noisy or malfunctioning fuel pumps
• Restores proper fuel flow for improved engine performance
• Eliminates fuel contamination with internal strainer filtration

Installation Notes and Tips

Installation of the Delphi FG1079 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Verify that the four-pin male terminals align correctly with the vehicle’s wiring harness. Use appropriate tools to disconnect and reconnect the quick connect fuel outlets securely. Since this module does not include a gasket or lock ring, reuse the existing components or source replacements as needed to ensure a proper seal and secure installation.

Quality Assurance and Warranty

Delphi manufactures the FG1079 fuel pump module assembly to meet standard replacement quality levels, ensuring dependable operation in compatible Audi and Volkswagen vehicles. While this product does not include a fuel pressure regulator or fuel level sender assembly, it is built to OEM specifications for voltage, pressure, and flow ratings. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor or retailer.
