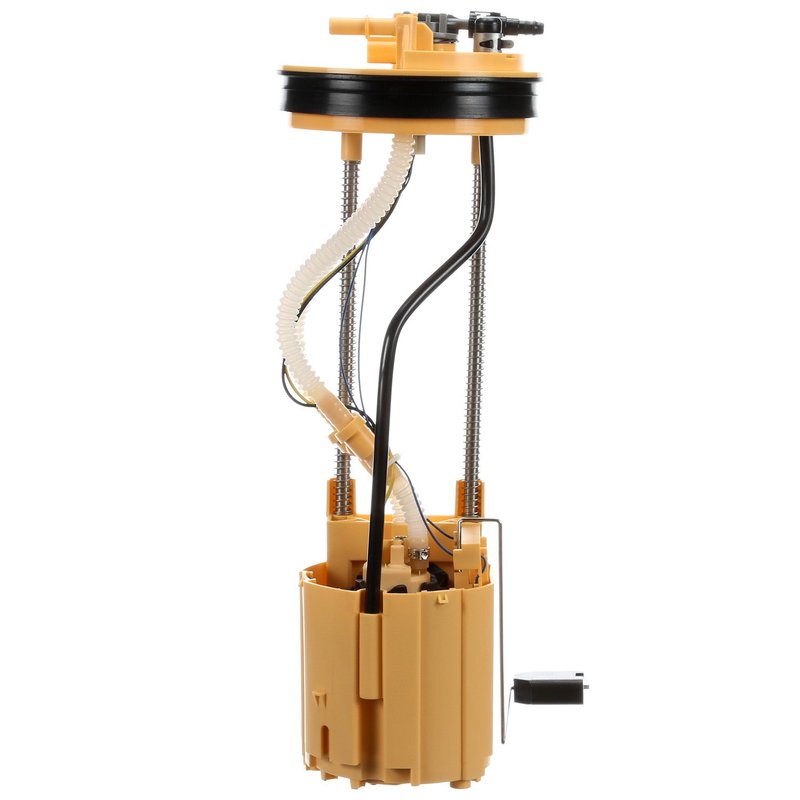

Delphi FG1080 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1080 fuel pump module assembly is designed specifically for Dodge Ram 2500 and Ram 3500 diesel models. This in-tank electric fuel pump ensures reliable fuel delivery with precise flow and pressure control, supporting optimal engine performance.

• Compatible with Dodge Ram 2500 and Ram 3500 diesel trucks
• Electric in-tank fuel pump module assembly with integrated fuel level sender
• Operates at 13.0 volts with a maximum pressure of 16.0 psi
• Includes internal strainer and gasket for secure installation
• Features quick connect outlet with 0.375 inch outside diameter
• Four male pin terminals for electrical connection
• Average flow rating of 35 liters per hour and system pressure of 9.5 psi

Technical Details and Specifications

The Delphi FG1080 fuel pump module assembly is engineered for diesel fuel systems in Dodge Ram 2500 and Ram 3500 trucks. It operates at 13 volts and delivers a maximum pressure of 16 psi, maintaining consistent fuel flow with an average rating of 35 liters per hour. The pump features an internal strainer inlet and a quick connect outlet with a 0.375 inch outside diameter, ensuring efficient fuel filtration and secure hose attachment. The module includes a fuel level sender assembly with resistance values ranging from 220 ohms when empty to 20 ohms when full, providing accurate fuel level readings. Electrical connections are made via four male pin terminals, designed for reliable and secure contact.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Dodge Ram 2500 and Ram 3500 diesel trucks
• Addresses issues with inconsistent fuel delivery or low fuel pressure
• Resolves inaccurate fuel level readings due to sender assembly failure
• Eliminates fuel contamination problems with integrated internal strainer
• Prevents engine performance issues caused by inadequate fuel flow

Installation Notes and Tips

Installation of the Delphi FG1080 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket included is properly seated to prevent fuel leaks. Verify electrical connections match the four male pin terminals and confirm secure quick connect fittings on the outlet lines. Follow vehicle-specific service manual instructions for safe handling of diesel fuel systems and proper torque specifications.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Dodge Ram 2500 and Ram 3500 diesel trucks. It includes a fuel level sender assembly and internal strainer to maintain system integrity. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring dependable operation when installed according to guidelines.
