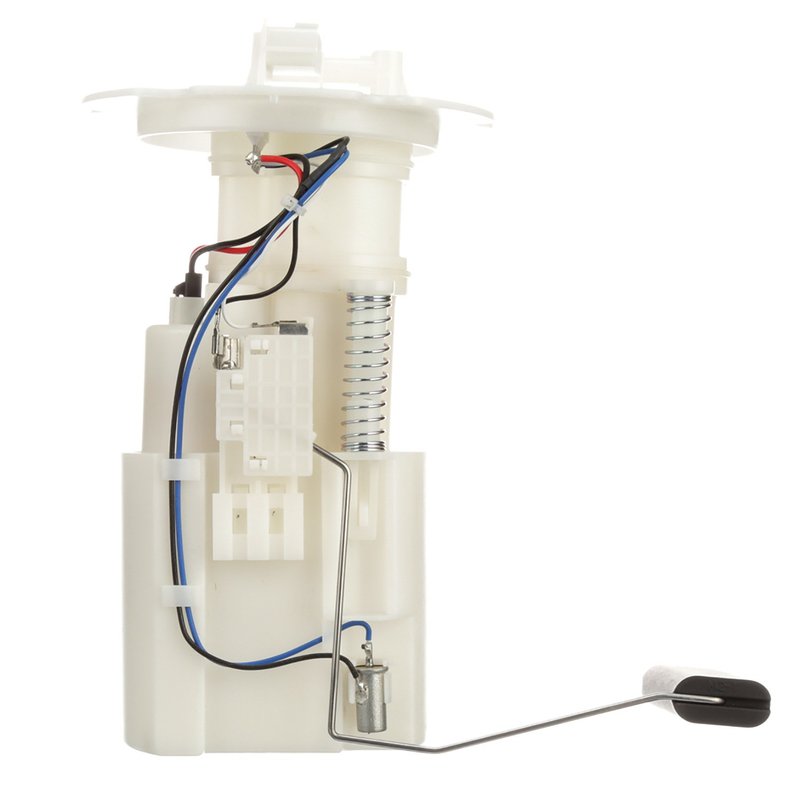

Delphi FG1084 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Nissan and INFINITI Vehicles

The Delphi FG1084 fuel pump module assembly is designed to provide consistent fuel delivery and accurate fuel level readings for select Nissan and INFINITI models. Engineered as a direct replacement, this in-tank electric fuel pump module ensures proper fuel system pressure and flow for optimal engine performance.

• Compatible with Nissan 350Z, G35, G37, M35, M45 and INFINITI models
• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• System pressure rated at 51 psi with maximum pressure up to 80 psi
• Blade-type male terminals with 5-terminal configuration for reliable electrical connection
• Average flow rating of 26 liters per hour and average current draw of 8 amps

Technical Details and Features

The Delphi FG1084 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type with two outlet ports, each measuring 0.375 inches in outside diameter. The module includes a fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump maintains a system pressure of 51 psi and can handle a maximum pressure of 80 psi, ensuring consistent fuel delivery under various operating conditions. Electrical connections are made via five male blade terminals, supporting stable and secure wiring. The internal resistance varies from 80 ohms when empty to 5 ohms when full, reflecting the fuel level sender's operation. This standard replacement grade module comes with a gasket and an instruction sheet to assist with installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Nissan and INFINITI models:

• Nissan 350Z
• Nissan G35
• Nissan G37
• Nissan M35
• Nissan M45
• INFINITI models corresponding to the above Nissan platforms

It is designed for in-tank installation and is suitable for gasoline fuel systems requiring an electric pump with integrated fuel level sending capabilities.

Common Issues Addressed by Delphi FG1084

• Intermittent or complete fuel delivery failure
• Inaccurate fuel gauge readings due to faulty sender assembly
• Low fuel pressure causing engine performance issues
• Fuel pump noise or electrical connection problems
• Fuel contamination due to missing or damaged strainer

Installation Notes and Tips

When installing the Delphi FG1084 fuel pump module assembly, ensure the following:

• Verify vehicle compatibility with Nissan 350Z, G35, G37, M35, or M45 models
• Use the included gasket to prevent fuel leaks and ensure a proper seal
• Handle the float arm carefully to avoid damage to the fuel level sender
• Confirm all electrical connections are secure on the five blade terminals
• Follow the instruction sheet provided for step-by-step installation guidance

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for reliable performance and durability. The FG1084 is a standard replacement grade part backed by Delphi's quality standards. While specific warranty details may vary, Delphi products typically include limited warranties covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
